RFID Access Control Card Reader with Digital Keypad
SAVE
As low as $14.5000
In stock
Only %1 left
SKU
RFID-01-019
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

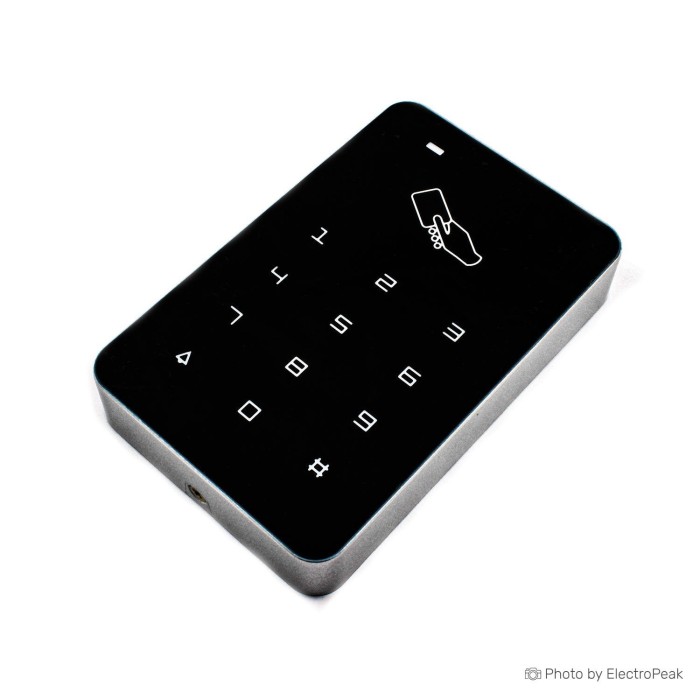

RFID Access Control Card Reader with Digital Keypad is a touch-key access control device for card and keypad operation. It supports RFID card reading and includes keypad input for door access control. The unit stores up to 1000 users and operates from a 12V supply. Current draw is less than 100mA. RFID operation is listed at 125KHz and 13.56MHz. The device supports four working modes for output relay control. A doorbell can also be connected for ringing from the panel button.
Features of RFID Access Control Card Reader with Digital Keypad
- RFID card and keypad support
- 1000-user storage capacity
- Four working modes
- Doorbell connection support
- Touch-key operation
Specifications of RFID Access Control Card Reader with Digital Keypad
- Dimensions: 125x84x23mm
- Operating voltage: 12V
- Current: Less than 100mA
- Working frequency: 125KHz
- Working frequency: 13.56MHz
- Storage capacity: 1000 users
- Working modes: 4
- Panel material: Acrylic
- 4-digits public PIN capacity: 1
- External reader: Not support
- Compatible cards: ID Or IC Card (Optional)
- Proximity reader frequency: 125KHz Or 13.56MHz (Optional)
- Card reading distance: 1-15cm
- Operate temperature: 0C-60C
- Relative humidity: 20%-90%
- Dimension: 116mm x 75mm x 20mm
- Door open options (admin user selectable): ID or IC Card Only / Password Only / ID or IC Card (Key Ring) + Password
How to Use RFID Access Control Card Reader with Digital Keypad
- Connect the device to a 12V power supply.
- Set the desired operating mode and access option.
- Register users and use cards, passwords, or combined access for operation.
More Info
- Card and keypad access are supported in multiple modes.
- A doorbell can be connected to the panel button.
- Frequency and card options are listed as optional in the provided specifications.
