RELAY soil moisture SENSOR
$0.9500
In stock
SKU
SEN-10-107
Volume discounts:
- +50 3 % $0.9200
- +100 5 % $0.9000
- +300 7 % $0.8800
- +500 9 % $0.8600
- +1000 11 % $0.8500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XH-B310 K-Type Thermometer with LED Digital Display Previous

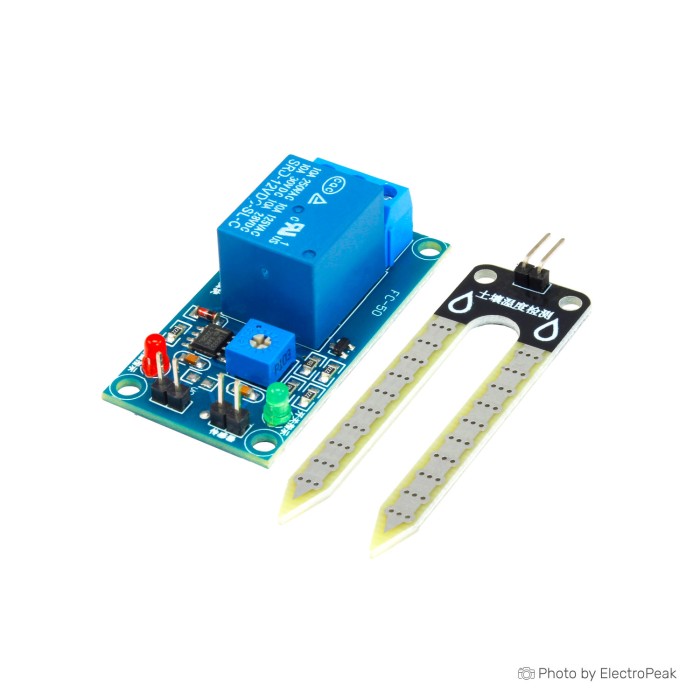

The YL-69 Relay Soil Moisture Sensor Module is designed for soil moisture monitoring and relay-based switching. It combines a high-sensitivity YL-69 soil moisture sensor with a relay module for moisture-driven control. The module supports automated irrigation, gardening, agriculture, and greenhouse moisture monitoring. It operates with a 5V DC supply and provides relay switching output. The soil moisture range is 0% to 100% with analog output for precise measurement.
Features of YL-69 Relay Soil Moisture Sensor Module
- High-sensitivity YL-69 sensor
- Relay switching output
- Analog moisture measurement
- Automated irrigation control
- Suitable for gardening and agriculture
Specifications of YL-69 Relay Soil Moisture Sensor Module
- Operating Voltage: 5V DC
- Average Current: less than 50mA
- Relay Output: up to 10A at 250V AC
- Relay Output: up to 10A at 30V DC
- Moisture Sensor Type: YL-69 high-sensitivity soil moisture sensor
- Output Signals: Relay switching
- Soil Moisture Range: 0% to 100%
- Output Type: Analog output for precise measurement
- Operating Temperature: -10°C to 60°C
- Control Module Dimensions: 50x26x18mm
- Sensor Dimensions: 65x20mm
How to Use YL-69 Relay Soil Moisture Sensor Module
- Connect the module to a 5V DC power supply.
- Install the soil sensor in the monitored soil area.
- Use the relay switching output for moisture-based control.
More Info
- Ideal for automated watering systems.
- Includes both a control module and a sensor.
| Platform | Arduino Mega, Arduino Uno, Arduino Nano, Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Current (mA) | <50mA |
| Operating Temp (°C) | -10 to 60 |
| Dimensions (mm) | 50x26x18; 65x20 |
| Mounting Type | Screw holes |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 10A/250VAC, 10A/30VDC |
| Load Current (A) | 10A |
| Control Signal | Analog |
| Chipset | YL-69 |
| LED Count | 2 |
| Relay Type | Relay output |
| Display Type | None |
| Material | PCB |
| Input Type (AC/DC) | DC |
