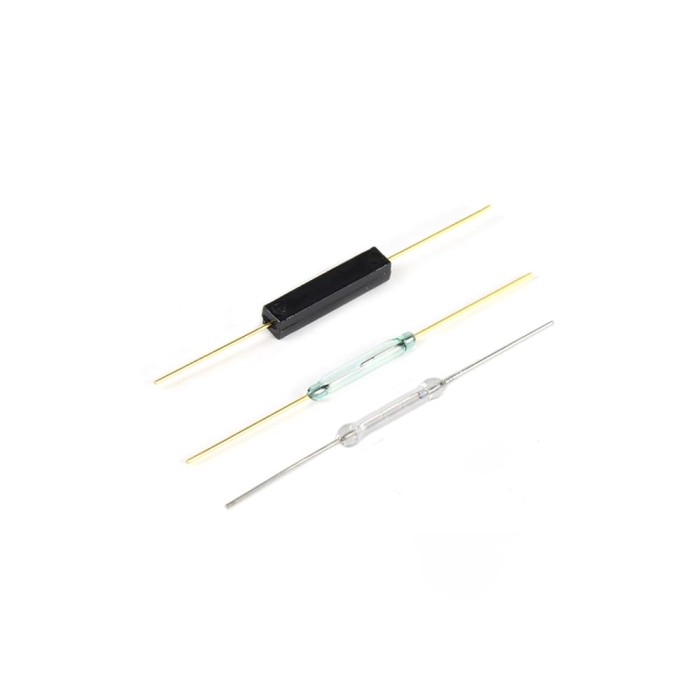

Reed Switch -Magnetic Field Switch
SAVE
As low as $0.5500
In stock
Only %1 left
SKU
SEN-09-025
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MDS-60 DIY Metal Detector Module Kit Previous
The Reed Switch - Magnetic Field Switch is a versatile and reliable sensor that offers accurate detection and control of magnetic fields. With its compact size and easy installation, this switch is suitable for a variety of applications, from security systems to industrial automation. It has a high sensitivity and a fast response time, ensuring precise and responsive operation.
Equipped with a durable and sealed design, the Reed Switch - Magnetic Field Switch offers reliable performance in harsh environments. It also has a wide operating voltage range and a low contact resistance, ensuring stable and efficient operation. With its affordable price and versatile use, this switch is a top choice for all your magnetic field sensing needs. Upgrade to the Reed Switch - Magnetic Field Switch and streamline your processes today.
Specification of Reed Switch -Magnetic Field Switch:
- Glass Length : 11~14.2mm
- Glass Diameter : 2.7~3.1mm
- Total Length : 41.8~44.7 mm
- Max. Switching Voltage : 100Vdc
- Min. Breakdown Voltage : 110~160Vdc/220Vac (<20A) or 180Vdc/250Vac (>20A) please review specs in pictures
- Max switching current: 0.5A
- Max.Operate time : 0.45~0.5 ms
- Bounce time : 0.25 ms
- Max. Release time : 0.3~0.35 ms
- ResonantFrequency : 5000HZ
- Max.Operating : 400HZ
| Operating Voltage (V) | Max 100V DC |
|---|---|
| Operating Current (mA) | 500 mA |
| Dimensions (mm) | Glass Length: 11-14.2 mm, Glass Diameter: 2.7-3.1 mm, Total Length: 41.8-44.7 mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Digital |
| Response Time | 0.25-0.5 ms |
| Chipset | GPS-14A |
