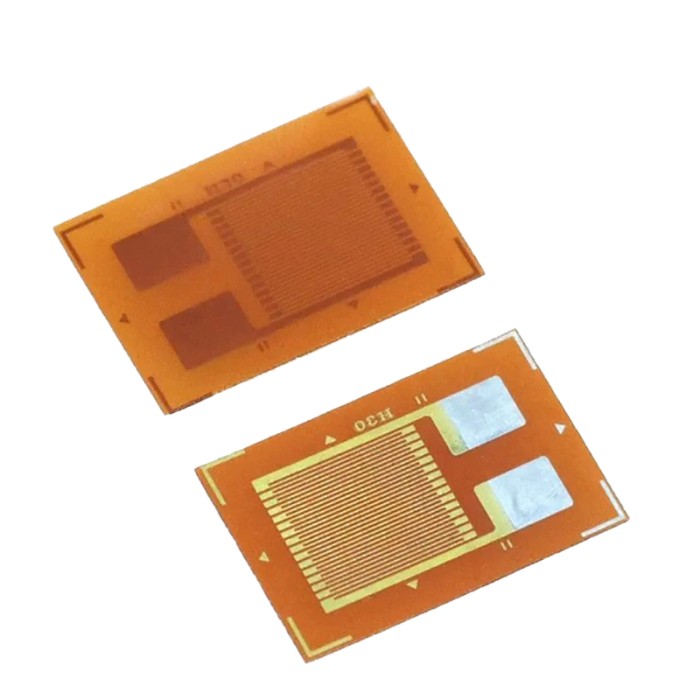

Rectangular Strain Gauge Sensor BF350
SAVE
As low as $0.5500
In stock
Only %1 left
SKU
SEN-13-075
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Piezoelectric Ceramic Vibration Sensor Previous
The BF350 Rectangular Strain Gauge Sensor is a high-precision metal foil sensor designed to measure strain with excellent stability and sensitivity. This sensor is built using a constantan alloy metal foil, which offers high fatigue resistance and minimal temperature-induced variability. It is widely used in applications requiring accurate force, weight, or pressure measurements, such as in load cells, transducers, and various engineering experiments.
Specifications of BF350 Rectangular Strain Gauge Sensor
-
Nominal Resistance: 350 Ohm
-
Tolerance: < ±0.1%
-
Gauge Factor: 2.00 ~ 2.20
-
Gauge Factor Resistance: < ±1%
-
Strain Limit: 2.0%
-
Fatigue Life: > 10^6 cycles
-
Material: Constantan alloy
-
Options: 3AA / 5AA / 10AA / 20AA / 30AA / 50AA / 80AA / 100A
Development Resources of BF350 Rectangular Strain Gauge Sensor
| Accuracy | < ±0.1% |
|---|---|
| Sensing Principle | Strain Gauge |
| Sensitivity Adj. | No |
| Sensor Type | 350 ohms single bridge strain gauge |
| Material | Constantan alloy |
| Strain Limit | 2.0% |
