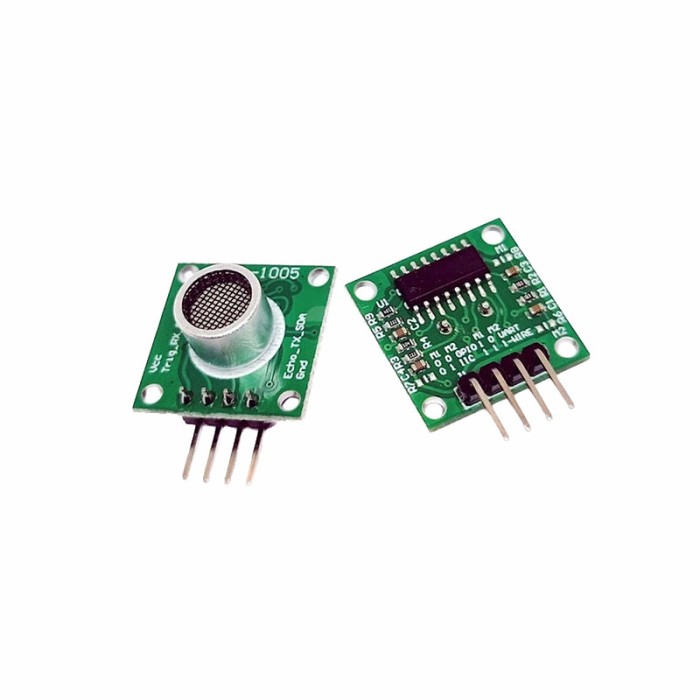

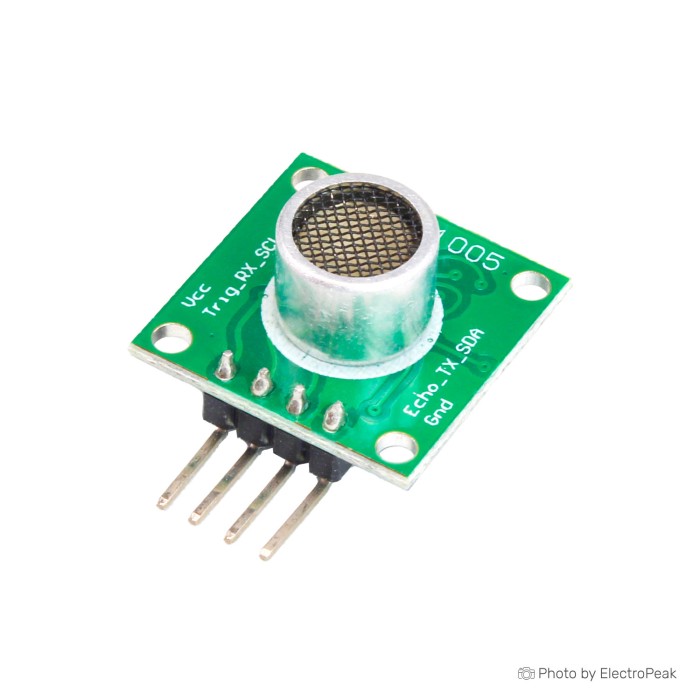

RCWL-1005 Mini Ultrasonic Distance Sensor Module

The RCWL-1005 Mini Ultrasonic Distance Sensor Module is a compact and highly efficient ultrasonic ranging module that integrates the RCWL-9624 transceiver chip. It offers a small blind area of 25cm and a maximum detection range of 4.5m, making it suitable for obstacle avoidance in robotics, liquid level measurement, and other distance-sensing applications. It operates on a low power consumption of 2mA and supports multiple output modes, including GPIO, UART, IIC, and 1-Wire. The module is fully compatible with HC-SR04 by default.

Specifications of RCWL-1005 Mini Ultrasonic Distance Sensor Module

• Operating Voltage: 2.8V - 5.5V

• Operating Current: 2mA (typical), max 3mA

• Maximum Detection Distance: 4.5m - 5.5m

• Blind Spot: 25cm - 26cm

• Operating Frequency: 40KHz

• Detection Accuracy: ±2%

• Resolution: 1mm

• Detection Angle: ±20° to ±30°

• Measurement Cycle Time: 50ms

• Output Interface Modes: GPIO, UART, IIC, 1-Wire

• Operating Temperature:

  • Plastic Case Probe: -10°C to 60°C

  • Aluminum Shell Probe: -10°C to 70°C

• Dimensions: ---

Datasheet of RCWL-1005 Mini Ultrasonic Distance Sensor Module

Datasheet: Not available.
