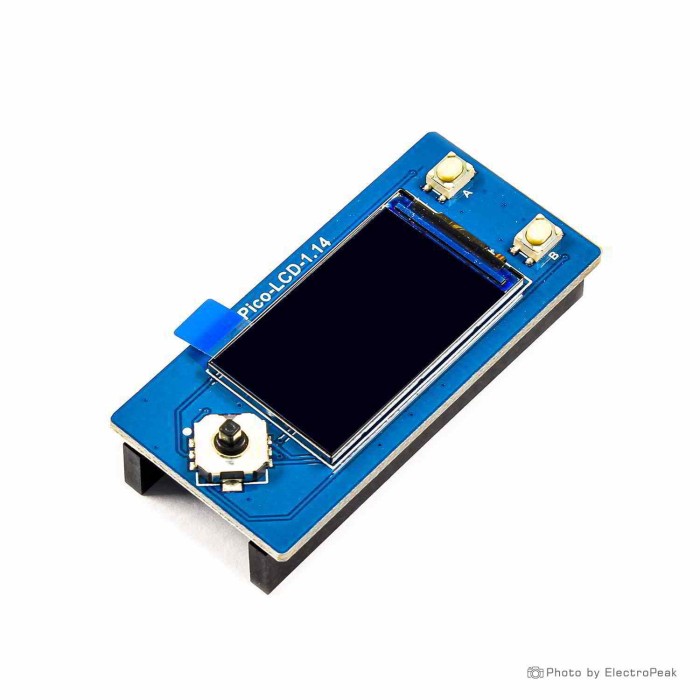

1.14inch LCD Shield for Raspberry Pi Pico

The Raspberry Pi Pico 1.14Inch LCD Shield is a 1.14-inch display expansion board for Raspberry Pi Pico. It provides a 240x135 pixel IPS screen with 65K RGB colors. The board uses an ST7789 driver and a 4-wire SPI interface. It is designed for the standard 40-pin GPIO interface of Raspberry Pi Pico. The shield also includes a joystick and push buttons for input.

Features of Raspberry Pi Pico 1.14Inch LCD Shield

• 1.14-inch LCD shield
• 240x135 pixel resolution
• 65K RGB color display
• IPS display panel
• ST7789 driver
• 4-wire SPI interface
• Joystick and push buttons

Specifications of Raspberry Pi Pico 1.14Inch LCD Shield

• Resolution: 240x135 pixels
• Operating Voltage: 2.6 - 5.5 V
• Communication Interface: 4-wire SPI
• Display Panel: IPS
• Pixel size: 0.1101 x 0.1035 mm
• Driver: ST7789
• 65K RGB colors
• Clear and colorful displaying effect
• 1x joystick and 2x user buttons for easy interacting

How to Use Raspberry Pi Pico 1.14Inch LCD Shield

1. Connect the shield to the Raspberry Pi Pico GPIO interface.
2. Use the SPI interface for display communication.
3. Operate the joystick and push buttons as input controls.

More Info

• Designed for the standard 40-pin GPIO interface of Raspberry Pi Pico.
• Minimizes the required IO pins.
