Raspberry Pi M.2 HAT+
$20.5000
In stock
SKU
DEV-28-004
Volume discounts:
- +25 4 % $19.6900
- +50 6 % $19.2800
- +100 8 % $18.8800
- +300 10 % $18.4700
- +500 12 % $18.0700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Raspberry Pi Build HAT Previous

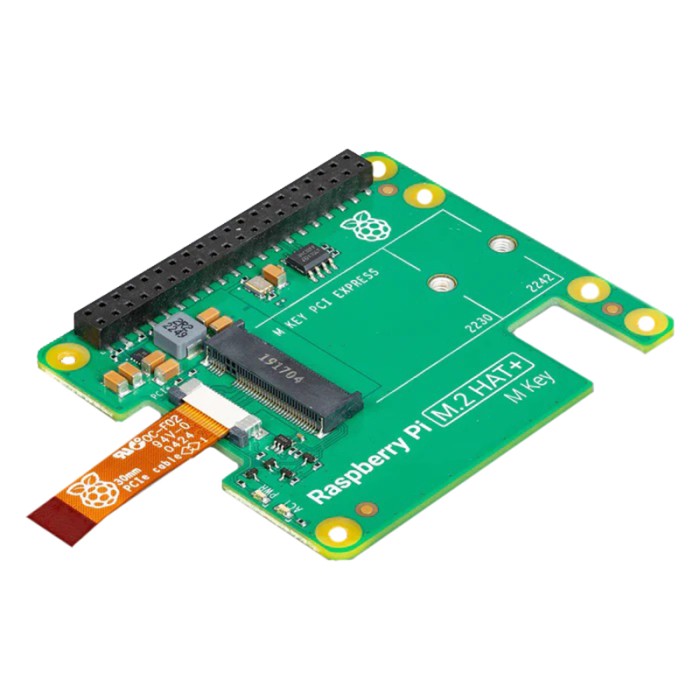

Raspberry Pi M.2 HAT+ is an add-on board designed exclusively for Raspberry Pi 5. It provides connectivity for M.2 devices through a single-lane PCIe 2.0 interface. The board supports 2230 and 2242 M.2 form factors and uses an M key edge connector. It follows the Raspberry Pi HAT+ specification and includes power and activity LEDs. The included accessories support installation and M.2 device mounting.
Features of Raspberry Pi M.2 HAT+
- Exclusive Raspberry Pi 5 compatibility
- Single-lane PCIe 2.0 interface
- 2230 and 2242 M.2 support
- M key edge connector
- Power and activity LEDs
- Raspberry Pi HAT+ compliance
Specifications of Raspberry Pi M.2 HAT+
- Compatibility: Works exclusively with Raspberry Pi 5
- Interface: Single-lane PCIe 2.0
- Peak transfer rate: Up to 500 MB/s
- M.2 support: M key edge connector
- M.2 support: 2230 form factor
- M.2 support: 2242 form factor
- Power supply: Provides up to 3A to connected M.2 devices
- Indicators: Power LED
- Indicators: Activity LED
- Design compliance: Raspberry Pi HAT+ specification
- Accessories included: Ribbon cable
- Accessories included: 16mm stacking header
- Accessories included: Threaded spacers and screws
- Accessories included: Knurled double-flanged screw for securing M.2 peripherals
- Operating temperature: 0°C to 50°C
- Production lifetime: Guaranteed production until at least January 2032
How to Use Raspberry Pi M.2 HAT+
- Install the board with Raspberry Pi 5.
- Connect the M.2 device using the M key edge connector.
- Use the included accessories for mounting and securing the hardware.
More Info
- Designed for M.2 device connectivity on Raspberry Pi 5.
- Includes support hardware for installation and secure mounting.
| Interface Type | PCIe 2.0 Single-lane |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 3000 |
| Operating Temp (°C) | 0 to 50 |
| Mounting Type | Plug-in shield |
| Interface Category | Converter |
| Output Type | Digital |
| Protocols | PCIe |
| Conversion Type | PCIe to M.2 |
