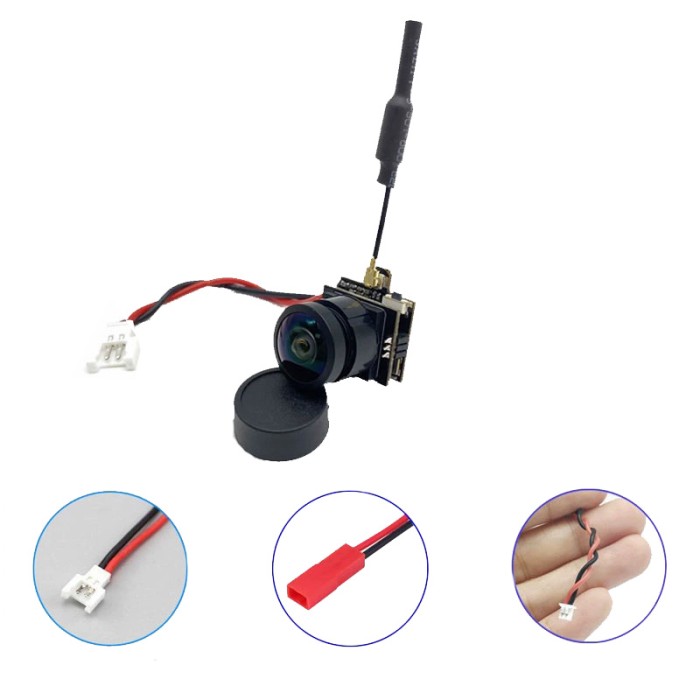

Radiolink 5.8G 48CH Wireless Image Transmission FPV Camera Transmitter OSD

[COM-07-001]
Shop with confidence Learn More
Availability: 118 items
SKU
COM-07-001
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$70.75

The Radiolink 5.8G 48CH Wireless Image Transmission FPV Camera Transmitter OSD is a compact and lightweight device designed for FPV (First-Person View) enthusiasts. It features multiple frequency channels, power levels, and easy switching for optimized image transmission. With a resolution of 720P and a 120° wide-angle lens, it delivers clear visuals in real-time. The device also supports Smartaudio and external OSD chips, ensuring enhanced control and configuration. Ideal for drone racing and aerial photography, this transmitter offers reliable performance in various environments.

Specifications of Radiolink 5.8G 48CH Wireless Image Transmission FPV Camera Transmitter OSD

  • Operating Frequency: 5.8G 48CH

  • Output Power: 25mW/100mW/200mW

  • Operating Voltage: DC 3-5.2V

  • Operating Current (4.2V): 330mA (25mW) / 430mA (100mW) / 490mA (200mW)

  • Weight: 4.4g (0.15oz)

  • Dimensions: 18.03x16.83x16.55mm

  • Resolution: 720P

  • Focal Length: 1.2mm

  • Lens Wide Angle: 120°

  • Smartaudio: Supported

  • External OSD Chip: Supported

How to use of Radiolink 5.8G 48CH Wireless Image Transmission FPV Camera Transmitter OSD

  1. Frequency Selection: Long press the switch button for 5 seconds, then short press to switch frequencies. The blue light indicates the frequency point.

  2. Channel Selection: Long press for 5 seconds to enter channel selection mode, then short press to switch channels. The blue light indicates the channel.

  3. Power Selection: Long press for 5 seconds to enter power selection mode, then short press to switch power levels.

  4. Transmit On/Off: Press the button twice quickly to toggle transmission mode. PitMode is indicated by a solid red light.

  5. Save Mode: Long press the switch button to save all parameters and exit setup
