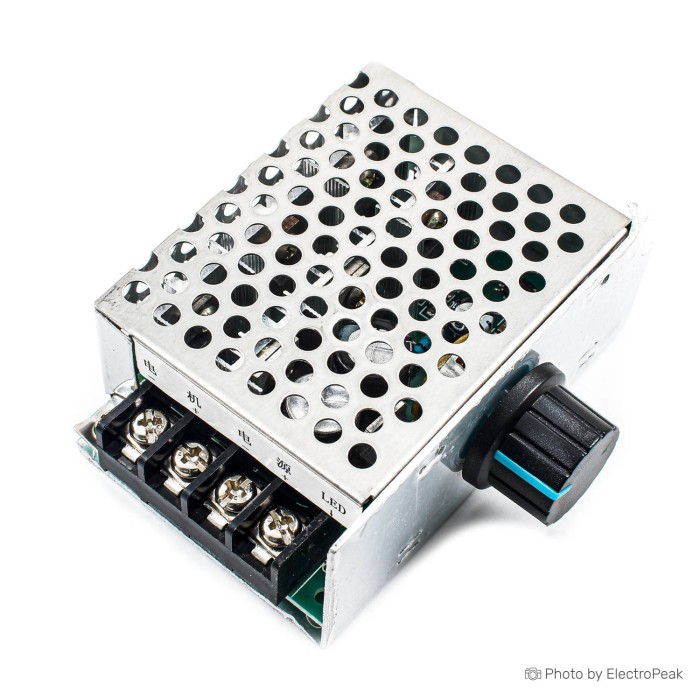

9-55V 40A PWM DC Motor Speed Controller

The 9-55V 40A PWM DC Motor Speed Controller is a PWM DC motor speed controller module for adjusting the speed of DC motors. It supports a 9V to 55V DC input range and provides 0 to 60A output current. The continuous current is 40A. Speed adjustment is handled by a linear potentiometer, with a 0 to 100% speed range. The control frequency is 15kHz. This module uses terminal connections and is supplied in a protective case.

Features of 9-55V 40A PWM DC Motor Speed Controller With Case

• 9V to 55V DC input
• 40A continuous current
• 0 to 60A output current
• 0 to 100% speed control
• Linear potentiometer adjustment
• 15kHz control frequency
• Terminal connection
• Protective case included

Specifications of 9-55V 40A PWM DC Motor Speed Controller With Case

• Input voltage: 9V to 55V DC
• Output voltage: Linear load
• Output current: 0 to 60A
• Continuous current: 40A
• Speed control method: Linear potentiometer
• Speed range: 0 to 100%
• Control frequency: 15kHz
• Connection type: Terminal
• Dimensions: 85x57x36 mm
• Weight: 272g

How to Use 9-55V 40A PWM DC Motor Speed Controller With Case

1. Connect the DC power input within the 9V to 55V range.
2. Wire the motor through the terminal connections.
3. Adjust the linear potentiometer to set the speed.

More Info

• Supplied with a protective case.
• Designed for terminal-based wiring.
