Pneumatic 3D Printer J-Head Remote Extruder - 3mm/1.75mm Filament
SAVE
As low as $0.1600
In stock
Only %1 left
SKU
3DP-01-026
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Vertical Linear Bracket Rail Shaft Support Previous

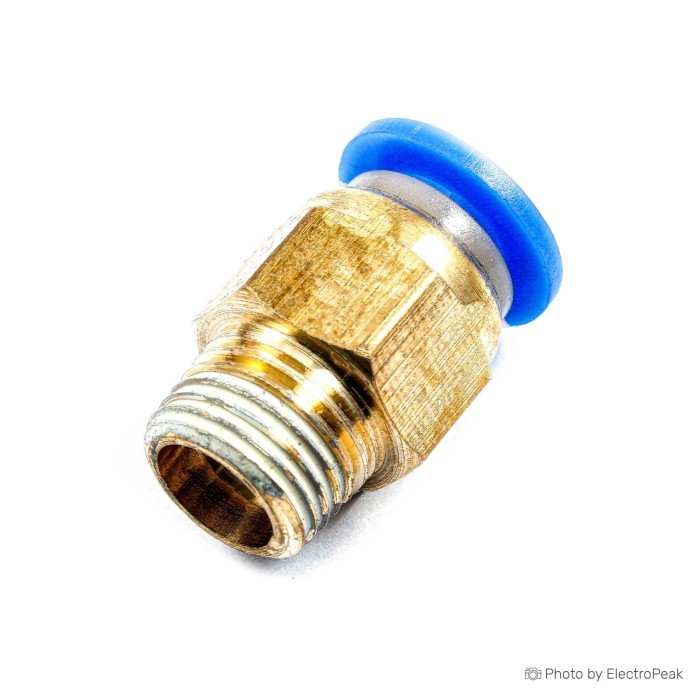

Pneumatic 3D Printer J-Head Remote Extruder is a brass connector for direct pneumatic and Bowden tube attachment. It is used as a spare feeding inlet connect fitting for all metal J-head extruder setups. The fitting supports quick connections and disconnections with a reusable design. It also features an elliptical sleeve configuration and a nickel-plated brass metallic body. This pneumatic fitting is suitable for PTFE tube fixing at both ends of the extruder.
Features of Pneumatic 3D Printer J-Head Remote Extruder - 3mm/1.75mm Filament
- Brass body
- External thread connection
- Reusable connector
- Quick connection and release
- Elliptical sleeve configuration
- Nickel-plated brass construction
- For 1.75mm and 3mm filament
Specifications of Pneumatic 3D Printer J-Head Remote Extruder - 3mm/1.75mm Filament
- Material: Brass
- Installation Type: External thread connection
- Inner Diameter: 2 mm / 4 mm (optional)
- External diameter: 4 mm / 6 mm (optional)
- Suitable for 1.75mm / 3mm filament (optional)
- PTFE tube outer diameter: 6 mm
- PTFE tube inner diameter: 4 mm
How to Use Pneumatic 3D Printer J-Head Remote Extruder - 3mm/1.75mm Filament
- Insert the tube into the connector opening.
- Press the plastic part to release the tube when needed.
More Info
- Used for direct connection of pneumatic hoses and tubes.
- Suitable for fixing PTFE tubes at both ends of the extruder.
