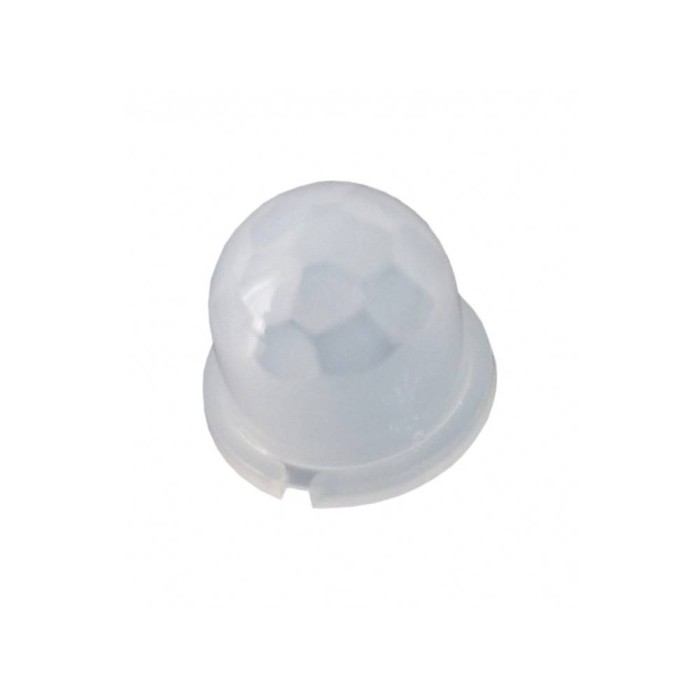

8002 PIR Human Fresnel Lens - 8mm, White
$0.0320
In stock
SKU
SEN-24-020
Volume discounts:
- +500 3 % $0.0310
- +1000 6 % $0.0300
- +5000 9 % $0.0290
- +20000 13 % $0.0280
8002 PIR Human Fresnel Lens - 8mm, White is available to buy in increments of 20
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
8605-3 PIR Sensor Fresnel Lens - 34mm, White Previous
The 8308 PIR Fresnel Lens is an infrared induction lens for PIR sensors. It is designed to improve sensing accuracy and extend the measurement range of PIR motion detection systems. This PIR human Fresnel lens is listed with a white finish and compact size. Use it where a PIR sensor lens is required for infrared induction applications.
Features of 8308 PIR Fresnel Lens - 8mm, White
- Infrared induction lens
- Suitable for PIR sensors
- Improves detection accuracy
- Extends measurement range
- White color
Specifications of 8308 PIR Fresnel Lens - 8mm, White
- Name: Infrared induction lens(PIR)
- Model: 8308
- Material: HDPE/Plastic
- Focal length: 5mm
- Viewing angle: 120
- Detection distance: 6m
- Size: 11.8x9.8mm
How to Use 8308 PIR Fresnel Lens - 8mm, White
- Place the lens in the PIR sensor assembly.
- Align the lens with the sensing area.
More Info
- Intended for PIR motion sensing applications.
- Compact Fresnel lens format.
| Dimensions (mm) | 11.8x9.8mm |
|---|---|
| Measurement Range | 6m |
| Sensor Type | PIR |
| Measurement Principle | Infrared |
| Material | HDPE/Plastic |
