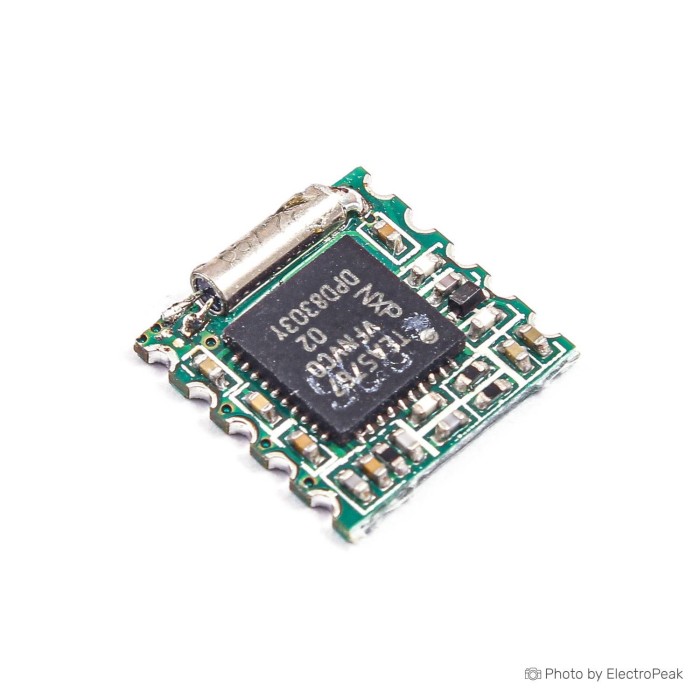

TEA5767 FM Stereo Radio Module

TEA5767 FM Stereo Radio Module is a single-chip FM stereo radio module for low-voltage applications. It includes integrated IF selectivity and an FM demodulator. The module is adjustment-free and designed for simple operation with minimal external components. It supports Japanese, US, and European FM bands. The TEA5767 FM Stereo Radio Module can be interfaced with Arduino boards, Raspberry Pi, and microcontrollers through I2C.

Features of TEA5767 FM Stereo Radio Module

• Single-chip FM stereo radio
• Integrated IF selectivity
• Integrated FM demodulator
• I2C control interface
• Low-noise input amplifier
• RF AGC circuit
• Standby mode
• Soft mute
• Autonomous search tuning
• Adjustment-free stereo decoder
• PLL synthesizer tuning system
• Crystal reference oscillator

Specifications of TEA5767 FM Stereo Radio Module

• IC: TEA5767
• Frequency Range: 76MHz ~ 108MHz
• Input Voltage (Recommended): 3V
• Input Voltage Range: 2.5V ~ 5V
• Interface: I2C
• Size: 11.2mm x 11mm
• Internal Frequency: 32.768 kHz
• Voltage: 5V DC
• Frequency Range: 76 to 108 MHz
• Protocol: I2C
• System: PLL
• High sensitivity with low-switch RF input amplifier
• Suitable for manual applications

How to Use TEA5767 FM Stereo Radio Module

1. Connect the module using the I2C interface.
2. Apply the specified input voltage.
3. Control tuning and radio functions from the host board.

More Info

• Supports Japanese, US, and European FM bands.
• Suitable for Arduino boards, Raspberry Pi, and microcontrollers.
• Uses minimum external components.
