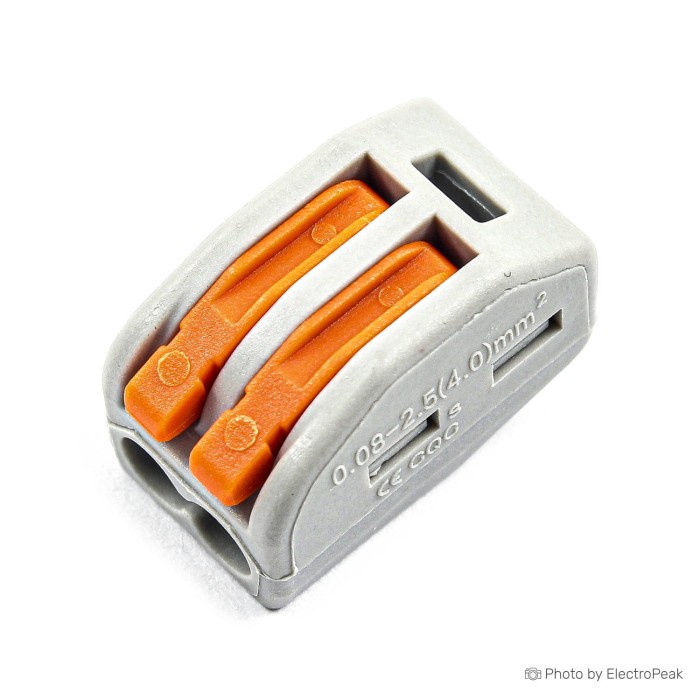

PCT-212 2-Conductor Compact Connector

$0.15
Availability: 1990 items
SKU
CAB-01-093
+100 7 % $0.14
+500 7 % $0.14
+1000 13 % $0.13
+5000 13 % $0.13
+10000 13 % $0.13
PCT-212 2-Conductor Compact Connector is available to buy in increments of 10
Related Products

Description:
PCT Spring Lever Connector [212, 213, 215] package contains of a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in maximum 7KW Power. This connector consists of a PA  shell, copper thin surface cathode diversion, and a spring lever from nickel-chromium alloy steel. Its insulation shell can tolerate a high voltage up to 4kV. Because of the tranparent shell, diagnosing and troubleshooting of wire connection is visual and so easy. This connector is easy to use and achieve strongly connection.
This connector is presented with 3 optional models with different weight and prices. PCT-212 is a 2 wire connector, PCT-213 is a three-wire connector, and PCT-215 is a 5 wire connector.

Features
Type: Wire connector
Model: PCT-212 , PCT-213 ,PCT-215
Port Number: 2,  3, 5
Suitable hardwire: 0.08 to 2.5 mm2
Strip length: 9 - 11 mm
Rated Voltage: 250V
Rated Current: 32A
