25cm PCB Reference Ruler, PCB Packaging Units for Electronic Engineers

[TLS-07-039]
Volume discounts:
  • +100 7 % $1.16
  • +300 10 % $1.13
  • +500 12 % $1.10
  • +1000 14 % $1.07
Shop with confidence Learn More
Availability: 1294 items
SKU
TLS-07-039
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$1.25

This versatile PCB ruler, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.

Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.

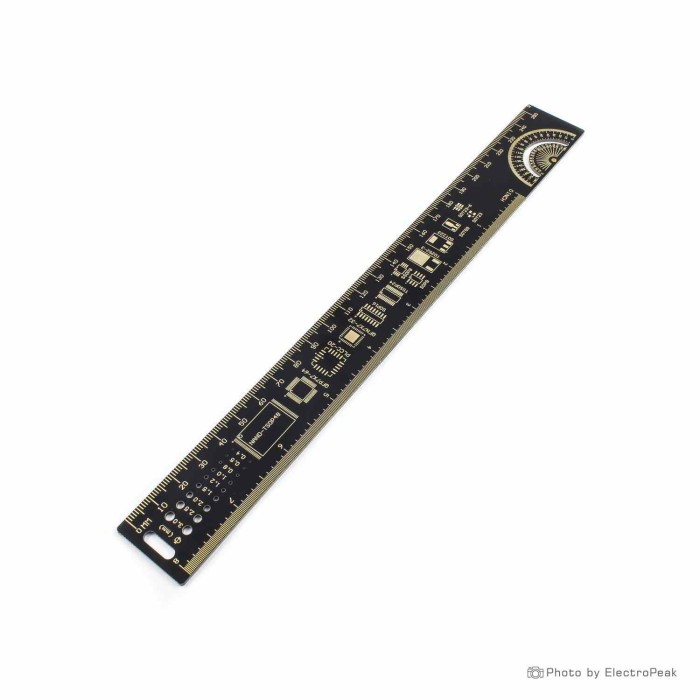

In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference

We printed this information on FR-4 gold-plated PCBs.

R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance

Specificatoins of 25cm PCB Reference Ruler, PCB Packaging Units for Electronic Engineers:

  • Front & Back surface FRONTSIDE:
  • The measurement length: 25cm
  • Measuring length: 10 inches
  • Commonly used IC package: 1.NAND_FLASH_TSOP48 2.QFP7X7-64 3.PLCC-20 4.SOP16 5.TSSOP24 6.SSOP8 7.SOP8
  • Commonly used CHIP component: 1.TO252-3 2.SOT223 3.SOT89-3 4.SOT23-6 5.SOT23-3 6.SOD123 7.SOD323 8.1210 9.3528 10.1206 11.0805 12. 0603 13. 0402 14.TO92
  • Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
  • Slot for hanging straightedge
  • BACKSIDE:
  • Commonly used line width reference (unit: mm)
  • Angle measurement: 180 degrees
  • Device, IC pin spacing table: 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm;
  • Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
