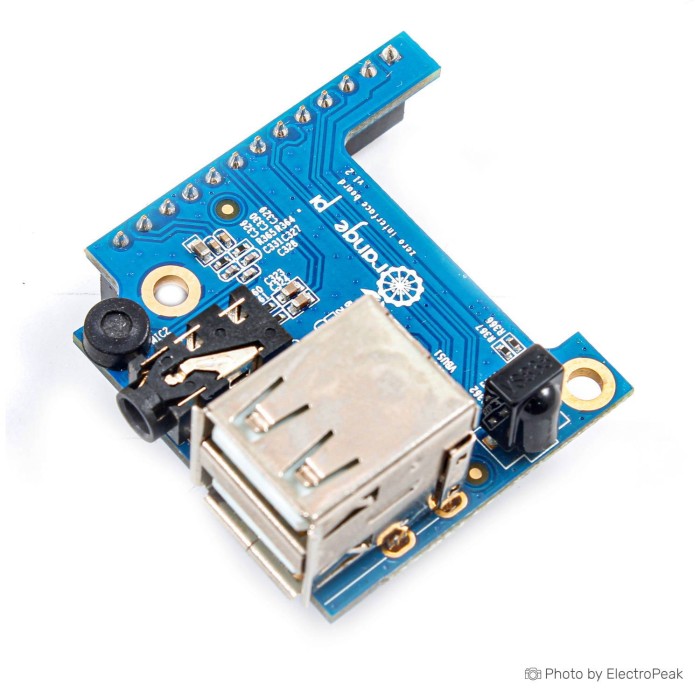

Orange Pi Zero Expansion Board

Orange Pi Zero Expansion Board is a development expansion board for Orange Pi Zero and Orange Pi Zero Plus. It provides interface access for the board and includes multiple onboard connectors. The Orange Pi Zero main board is not included. This expansion board is designed for Orange Pi Zero (256MB / 512MB). A memory card beyond 8G, Class 10 is required for Orange Pi.

Features of Orange Pi Zero Expansion Board - 2 USB, 39x41.5mm

• Expansion board for Orange Pi Zero
• Expansion board for Orange Pi Zero Plus
• 2 USB ports
• Audio input
• Microphone input
• IR receiver
• Video output

Specifications of Orange Pi Zero Expansion Board - 2 USB, 39x41.5mm

• Compatible with Orange Pi Zero (256MB / 512MB)
• 2 USB ports
• 1 audio input
• 1 microphone input
• 1 IR receiver
• 1 video output
• Size: 39x41.5 mm

How to Use Orange Pi Zero Expansion Board - 2 USB, 39x41.5mm

1. Connect the expansion board to the compatible Orange Pi board.
2. Install a memory card beyond 8G, Class 10.
3. Use the available USB, audio, microphone, IR, and video interfaces as needed.

More Info

• The Orange Pi Zero main board is not included.
• This is an interface development board.
