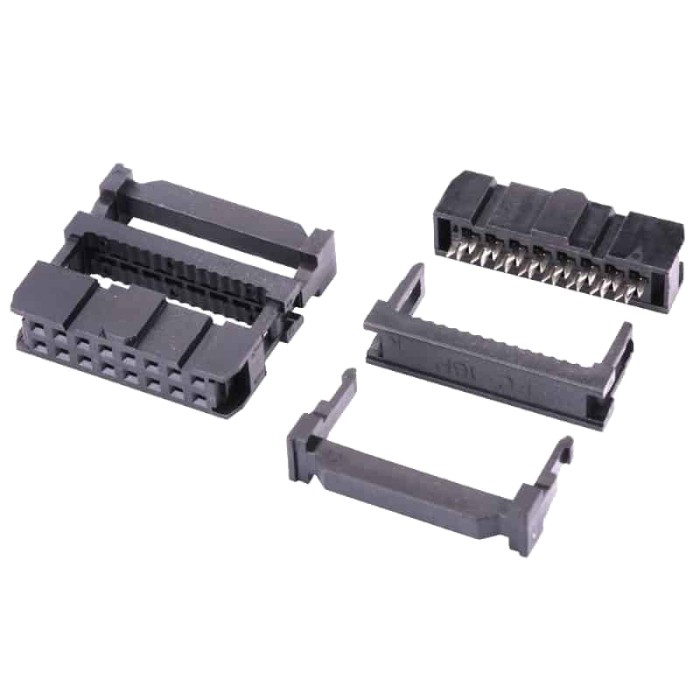

On-Board Female IDC/ FC Connector

The On-Board Female IDC/FC Connector is a specialized connector for on-board PCB applications and flat ribbon cable connections. It supports secure internal board-to-board connections in electronic devices. The IDC design allows easy insertion and termination of flat cables directly onto the PCB. It is suitable for PCB connections in computers, peripherals, and industrial electronics. This On-Board Female IDC/FC Connector is built for reliable signal transmission between boards.

Features of On-Board Female IDC/FC Connector - 2.54mm, Through-Hole

• Female IDC/FC connector
• Dual-row contacts
• Through-hole mounting
• Secure IDC connection
• Easy PCB assembly
• Space-saving design

Specifications of On-Board Female IDC/FC Connector - 2.54mm, Through-Hole

• Connector Type: Female IDC/FC Connector
• Contacts: Dual row, various pin configurations (e.g., 2x5, 2x10, etc.)
• Pitch: 2.54mm (0.1 inch)
• Termination Style: Through-hole mounting
• Material: High-quality plastic and metal
• Current Rating: Typically 1A per contact
• Operating Temperature: -40°C to +105°C
• Durability: Up to 500 insertion/removal cycles
• Dimensions: Varies based on pin configuration and manufacturer specifications
• Applications: PCB connections in computers, peripherals, industrial electronics

How to Use On-Board Female IDC/FC Connector - 2.54mm, Through-Hole

1. Place the connector on the PCB through-hole footprint.
2. Terminate the flat ribbon cable using the IDC connection.
3. Complete soldering or assembly as required by the PCB design.

More Info

• Designed for flat ribbon cable connections.
• Intended for internal PCB interconnection.
