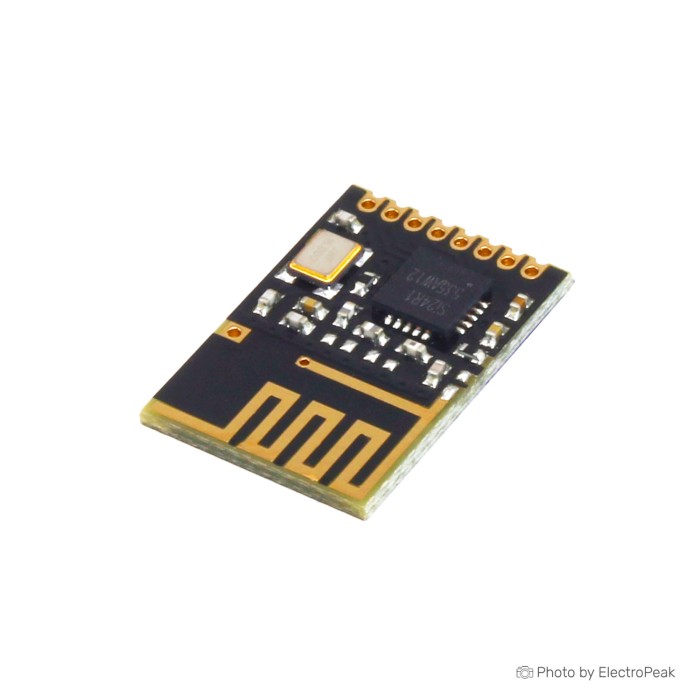

NRF24L01 Mini SMD Wireless Transceiver Module (2.4GHz)

NRF24L01+ Mini SMD Wireless Transceiver Module is a 2.4GHz wireless transceiver module for RF data transmission and reception in the ISM band. It uses the nRF24L01+ chip and supports SPI communication. The module includes Enhanced ShockBurst, auto acknowledgement, and automatic retransmission features. It also provides multiceiver support with 6 data pipes and separate 32-byte FIFO buffers for TX and RX. This compact wireless transceiver module is designed for 2.4GHz radio communication and multi-point networking.

Features of NRF24L01+ Mini SMD Wireless Transceiver Module - 2.4GHz

• 2.4GHz ISM operation
• nRF24L01+ chip
• SPI interface
• Enhanced ShockBurst support
• Auto acknowledgement
• Automatic retransmission
• 6 data pipes
• Separate TX and RX FIFO buffers
• 125 selectable channels
• Mult-point communication support

Specifications of NRF24L01+ Mini SMD Wireless Transceiver Module - 2.4GHz

• IC: nRF24L01+
• Frequency: 2.4GHz
• Input Voltage: 1.9V ~ 3.6V
• Transmitting Power: +7dB
• Receiving sensitivity: ≤ -90dB
• RX Mode current: 2Mbps - 15mA
• RX Mode current: 1Mbps - 14.5mA
• RX Mode current: 250kbps - 14mA
• Sleep Mode current: 15uA
• Power off current: 700nA
• Data Rate: 2Mbps
• Data Rate: 1Mbps
• Data Rate: 250Kbps
• Interface: SPI
• Transmission Distance: 250m in open area
• Operation temperature: -20°C ~ +55°C
• Size: 12mm x 18mm
• Working Voltage: 1.9-3.6V DC
• Signal Voltage Range: Maximum 5V
• Range: 1000m
• Maximum Data Rate: 2Mbps
• Current Consumption: 12mA
• Chip Supply Voltage Range: 1.9V to 3.6V
• Channel Range: 2400MHz to 2525MHz
• Selectable Channels: 125
• Frequency Type: ISM
• Modulation: GFSK
• Operating Temperature: -40°C to 85°C
• Size: 12x18mm
• Pins: VCC, CE, CSN, SCK, MOSI, MISO, IRQ

How to Use NRF24L01+ Mini SMD Wireless Transceiver Module - 2.4GHz

1. Connect the module pins to your controller through the SPI interface.
2. Provide the required input voltage within the specified range.
3. Set the communication channel and data rate as needed.
4. Use the module for wireless data transmission and reception.

More Info

• The command set is backward compatible with the original nRF24L01.
• The module supports multi-point communication and frequency hopping.
