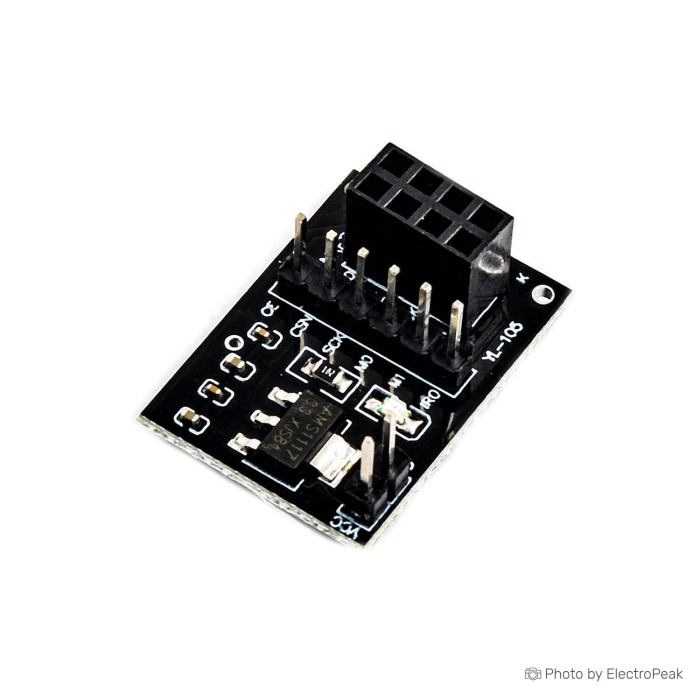

Breakout Adapter for NRF24L01+ with on-Board 3.3V Regulator
$0.2800
In stock
SKU
COM-03-031
Volume discounts:
- +100 4 % $0.2700
- +500 7 % $0.2600
- +5000 11 % $0.2500
- +10000 14 % $0.2400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LoRa RA-01 SX1278 433MHz Transceiver Module Previous
The Breakout Adapter for NRF24L01+ with on-Board 3.3V Regulator provides a stable power solution for NRF24L01+ wireless transceiver modules. It accepts DC input and delivers a regulated 3.3V DC output for module operation. The board includes an on-board 3.3V voltage regulator and built-in protection features. It is designed as a convenient interface for NRF24L01+ module integration.
Features of NRF24L01+ Breakout Adapter With On-Board 3.3V Regulator
- On-board 3.3V voltage regulator
- Stable DC power output
- Overvoltage protection
- Short-circuit protection
- User-friendly module interface
Specifications of NRF24L01+ Breakout Adapter With On-Board 3.3V Regulator
- Compatibility: NRF24L01+ wireless transceiver modules
- Input voltage: 4.8V to 12V DC
- Output voltage: 3.3V DC
- Maximum output current: 200mA
- Input connection: 2-pin connector
- Output connection: 4-pin connector
- Size: 40x20x10mm
- Voltage regulator: On-board 3.3V voltage regulator
- Power supply compatibility: Up to 9V DC
- Pinout: Clearly labeled pins
- Size: 26x19mm
How to Use NRF24L01+ Breakout Adapter With On-Board 3.3V Regulator
- Connect the DC input to the 2-pin input connector.
- Connect the NRF24L01+ module to the 4-pin output connector.
- Use the board as the regulated 3.3V power interface in your project.
More Info
- Suitable for NRF24L01+ module integration
- Designed for microcontroller and wireless communication projects
| Platform | Arduino, ESP32 |
|---|---|
| Operating Voltage (V) | 3.3V |
| Operating Current (mA) | 200 mA |
| Dimensions (mm) | 40x20x10 mm |
| Connector | Pin Header |
| Chipset | NRF24L01P |
| Input Voltage (V) | 5V-12V |
| Application | Robotics, Internet of Things (IoT) |
