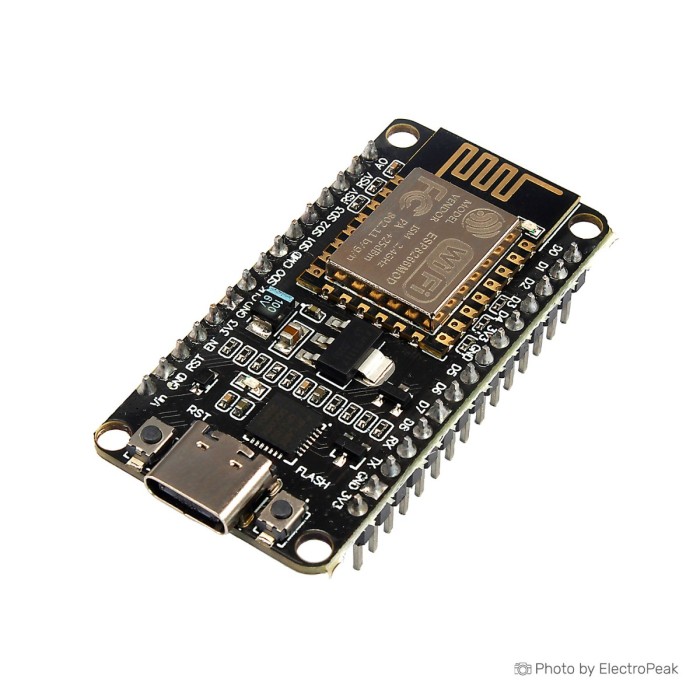

NodeMcu Lua ESP8266 WiFi Development Board CP2102 Driver - Type-C interface
$3.5000
In stock
SKU
COM-03-095
Volume discounts:
- +25 4 % $3.3600
- +100 6 % $3.2800
- +300 8 % $3.2100
- +500 10 % $3.1400
- +1000 12 % $3.0700
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
NodeMCU LUA ESP8266 12E/12F Wi-Fi Development Board Previous
The NodeMcu Lua ESP8266 WiFi Development Board is a compact development board for IoT and wireless control projects. It is based on the ESP8266 and includes a CP2102 USB-to-UART driver. The board supports Lua and Arduino IDE programming. It provides a Type-C interface for power, programming, and debugging. GPIO, PWM, and ADC support make it suitable for a wide range of electronics and robotics development tasks.
Features of NodeMcu Lua ESP8266 WiFi Development Board - CP2102, Type-C
- ESP8266-based development board
- CP2102 USB-to-UART driver
- Type-C interface
- Lua programming support
- Arduino IDE support
- GPIO, PWM, and ADC support
- Micro USB programming and debugging support
- Two 15-pin headers
Specifications of NodeMcu Lua ESP8266 WiFi Development Board - CP2102, Type-C
- WiFi module: ESP-12E version of ESP8266
- USB connection: micro USB port for power and programming
- CP2102 chip
- Two 15-pin headers
- Pin pitch: 2.54 mm
- Supported interfaces: GPIO
- Supported interfaces: SPI
- Supported interfaces: UART
- Supported interfaces: ADC
- Power supply: 5V via micro USB
- Dimensions: 49 x 24.5 x 13 mm
- Processor: ESP8266
- Memory: up to 4MB Flash
- Logic level: 3.3V
- Supported interfaces: IIC
- Supported interfaces: 1-Wire
- Reset button
- Flash button
- Higher current support
- Slim board design
- Breadboard compatible
How to Use NodeMcu Lua ESP8266 WiFi Development Board - CP2102, Type-C
- Connect the board using the Type-C or micro USB interface.
- Program the board with Lua or Arduino IDE.
- Use the GPIO, PWM, and ADC pins for your project.
More Info
- NodeMCU Firmware support
- Suitable for IoT development
- Supports prototyping and wireless control
| MCU/SoC | ESP8266 |
|---|---|
| Product Family | NodeMcu |
| Architecture | Tensilica L106 32-bit |
| CPU Cores | 1 |
| Clock Speed (MHz) | 80 MHz |
| Flash | 4MB |
| SRAM | 160 KB |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 1 |
| USB Ports | USB-C |
| Ethernet Support | No |
| ADC Channels | 1 |
| Operating Voltage (V) | 5V |
| GPIO Voltage (V) | 3.3V |
| GPIO Current (mA) | 12mA |
| Wireless | WiFi |
| Form Factor | 49x24.5x13 mm |
| IDE Support | Arduino IDE, Lua |
| Input Voltage (V) | 4.5V-10V |
| Antenna Type | Internal Antenna |
| Bluetooth Ver. | No |
