DS1302 Real Time Clock RTC Module
$0.4000
In stock
SKU
MISC-03-010
Volume discounts:
- +100 5 % $0.3800
- +1000 8 % $0.3700
- +5000 10 % $0.3600
- +10000 13 % $0.3500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
YwRobot DS1307 Real Time Clock RTC Module Previous

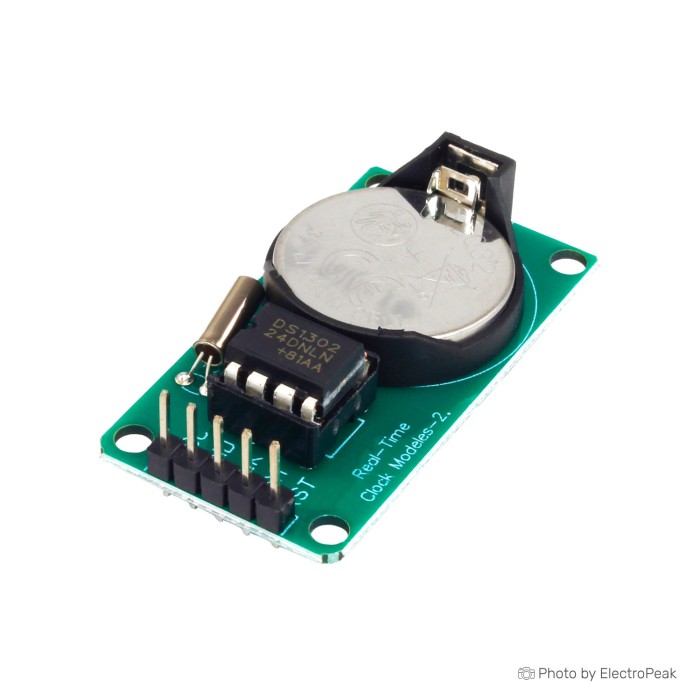

The DS1302 Real Time Clock RTC Module provides real-time timekeeping with low power consumption and built-in memory storage. It supports seconds, minutes, hours, days, weeks, months, and years before 2100. The module can operate in 12-hour or 24-hour mode using the AM/PM indicator. Once the time and date are set, they remain stored even after power is removed. The module uses a small pin count and is suitable for electronics and automation projects that need continuous clock tracking.
Features of DS1302 Real Time Clock RTC Module
- Real-time clock operation
- 31 bytes of internal memory
- 12-hour and 24-hour mode support
- Low power consumption
- Battery-backed time retention
- Three control pins
Specifications of DS1302 Real Time Clock RTC Module
- Module voltage: 3.3-5 volt DC
- Operating voltage: 2-5.5 volt DC
- Operating current: 5 milliamp
- Clock IC: DS1302
- Operating temperature: 40- to 85+ degrees Celsius
- Operating humidity: 0-95% RH
- Dimensions: 43x23x12 mm
- 4 holes with 3.1 mm diameter
- Compatible with Arduino and Raspberry Pi
- Suitable battery: CR2032
- 31x8 RAM for scratchpad data storage
- Serial I / O interface for minimum pin count
- Wide operating voltage: 2.0 ~ 5.5V
- Single-byte and multi-byte transfers for clock or RAM data read / write
- TTL compatible (Vcc = 5V)
- Operating temperature: 0 to +70 degrees Celsius
- 32.768KHz crystal oscillator
- Equipped with 260mAh CR2032 button battery, non-rechargeable
How to Use DS1302 Real Time Clock RTC Module
- Connect RST, DAT, CLK, GND, and VCC.
- Set the time and date.
- Use the module for continuous real-time tracking.
More Info
- Uses RST, DAT, and CLK signal pins.
- Supports AM/PM indication for mode selection.
- Maintains settings after power loss.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 2-5.5V DC |
| Operating Current (mA) | 5 mA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 43 x 23 x 12 mm |
| Mounting Type | Screw holes |
| Device Type | Real Time Clock (RTC) |
| Chipset | DS1302 |
| Alarm | No |
| Relay Channels | No |
| Functions | 12/24 hour format selection, AM/PM indicator, Calculates seconds, minutes, hours, days, weeks, months and years (up to 2100), Leap year compensation |
| Output Type | Digital |
