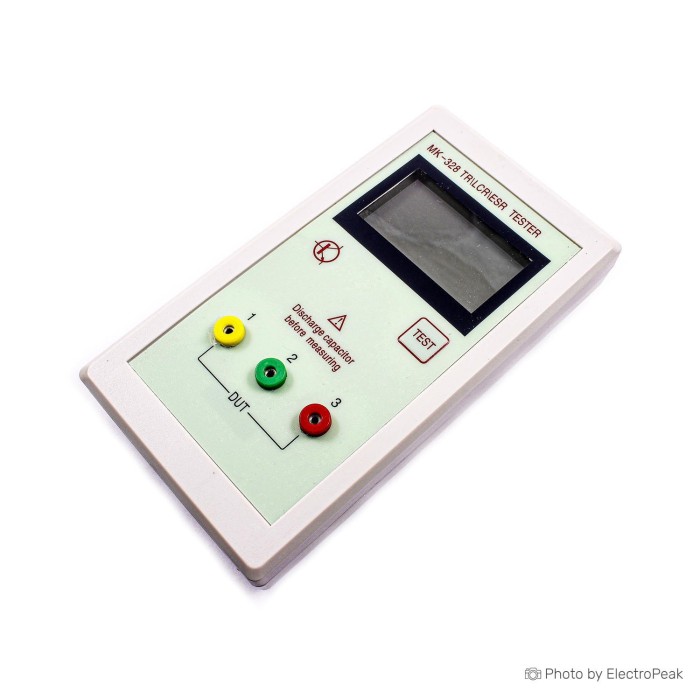

MK-328 TR LCR ESR Transistor, Inductance, Capacitance, Resistance Tester
$22.9500
In stock
SKU
PRO-01-025
Volume discounts:
- +25 4 % $22.0700
- +50 6 % $21.6300
- +100 8 % $21.2000
- +300 10 % $20.7600
- +500 11 % $20.3200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HTC-1 LCD Digital Temperature & Humidity Meter Previous
MK-328 TR LCR ESR Transistor Tester is an electronic component tester for semiconductor and passive parts. It measures most diodes, bipolar transistors, Junction MOS FETs, and low-power thyristors. The tester automatically identifies device types and pins. It also measures HFE current and FET junction capacitance. In addition, it can be used as an RLC and ESR tester. The unit uses a 12864 dot matrix LCD display and a 9V battery compartment for convenient battery replacement.
Features of MK-328 TR LCR ESR Transistor Tester
- Automatic device and pin identification
- Measures diodes, transistors, MOS FETs, and thyristors
- HFE current measurement
- FET junction capacitance measurement
- RLC and ESR testing
- 12864 dot matrix LCD display
- Battery compartment included
- AVR-ISP download port
- Protection circuit on measurement inputs
- Built-in bracket
Specifications of MK-328 TR LCR ESR Transistor Tester
- Voltage: 9V DC
- Current: 20mA
- Shutdown Current: 20nA
- Size: 83x54x34
- Weight: 175g
- Resistor Test Range: 0.5-50M
- Inductor Test Range: 0.01mH-20H
- Capacitor Test Range: 25pF-100000uF
How to Use MK-328 TR LCR ESR Transistor Tester
- Connect the electronic component to the tester inputs.
- Start the test and wait for the device and pin identification.
- Read the measured values on the LCD display.
More Info
- Uses the M328 chip
- Uses 2014 V1.11 software
- Compatible with standard 10-pin AVR-ISP download outlets
- Designed for easy software updates
| Weight (g) | 175 |
|---|
