GA6 B GSM Wireless Module (GPRS/GSM/SMS)
$12.9500
Out of stock
SKU
COM-08-015
Volume discounts:
- +25 4 % $12.4300
- +50 6 % $12.1700
- +100 8 % $11.9100
- +300 10 % $11.6600
- +500 12 % $11.4000
Shop with confidence Learn More
GSM/GPRS Antenna - 900-1800MHz, 20cm Length Previous

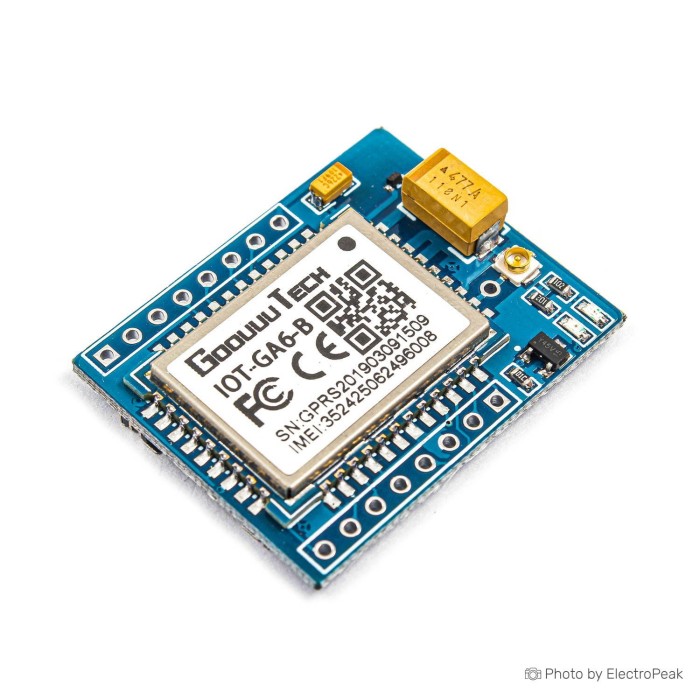

GA6 B Mini GSM GPRS Module is a serial GSM/GPRS development board for wireless communication, SMS, and data transfer. It supports GSM and GPRS networks for remote transmission of GPRS data and text messages. The module works with UART-based communication and can add voice, text, SMS, and data functions to Arduino projects. It also includes low-power operation and onboard support for external power input through micro USB. The GA6 B Mini GSM GPRS Module is designed with a compact form factor and dual serial port support.
Features of GA6 B Mini GSM GPRS Module - 850/900/1800/1900MHz
- Quad-band GSM support
- GPRS data transmission
- SMS sending and receiving
- UART communication
- Low sleep current
- Onboard Micro SIM holder
- Onboard micro USB interface
- Dual serial port support
- Digital and analog audio support
- Voice coding support
- Headset call support
Specifications of GA6 B Mini GSM GPRS Module - 850/900/1800/1900MHz
- Working voltage: 6-12V DC
- Working frequency: 850 / 900 / 1800 / 1900MHz
- Working current: maximum 2A
- Sleep current: 5mA
- Communication protocol: TTL serial port / RS232 serial port
- Baud rate: 115200bps
- Interface logic voltage: 3.3V DC
- Pin pitch: 2.54mm
- GPRS download data rate: 85.6Kbps
- GPRS upload data rate: 42.8Kbps
- Supported voice coding: HR, FR, EFR, AMR
- Supported certifications: ROHS, FCC, CE, CTA
- Onboard Micro SIM card holder
- Onboard micro USB interface for external power supply
- Two serial ports: download serial port and AT command serial port
How to Use GA6 B Mini GSM GPRS Module - 850/900/1800/1900MHz
- Connect the module to a suitable power source within the specified working voltage.
- Insert a Micro SIM card into the onboard holder.
- Connect the module to a microcontroller or Arduino board through the serial interface.
- Use AT commands to configure the baud rate and communication functions.
- Use the module for SMS, GPRS data, or voice communication features.
More Info
- Supports GPRS and SMS message remote transmission.
- Supports GSM and GPRS network operation.
- Includes support for voice, text, SMS, and data capabilities.
- Suitable for Arduino and microcontroller-based electronics projects.
| Platform | Arduino |
|---|---|
| Interface Type | USB, UART, RS232 |
| Operating Voltage (V) | 6-12V DC |
| Operating Current (mA) | Max 2000 mA |
| Mounting Type | THT |
| Connector | USB |
| Wireless Protocol | GSM/GPRS/4G |
| Frequency Band | 850 / 900 / 1800 / 1900 MHz |
| Data transmission rate | 85.6Kbps, 42.8Kbps |
| RF Modulation | GMSK |
| SIM Slots | 1 |
| Chipset | GA6-B |
| Input Voltage (V) | 6-12V |
| Application | Home automation, industrial automation, IoT projects, BMS Projects, M2M Applications, Personal Tracking, Public Transportation, Smart Metering, Wireless POS |
| Baud Rate | 115200bps (adjustable via AT commands) |
