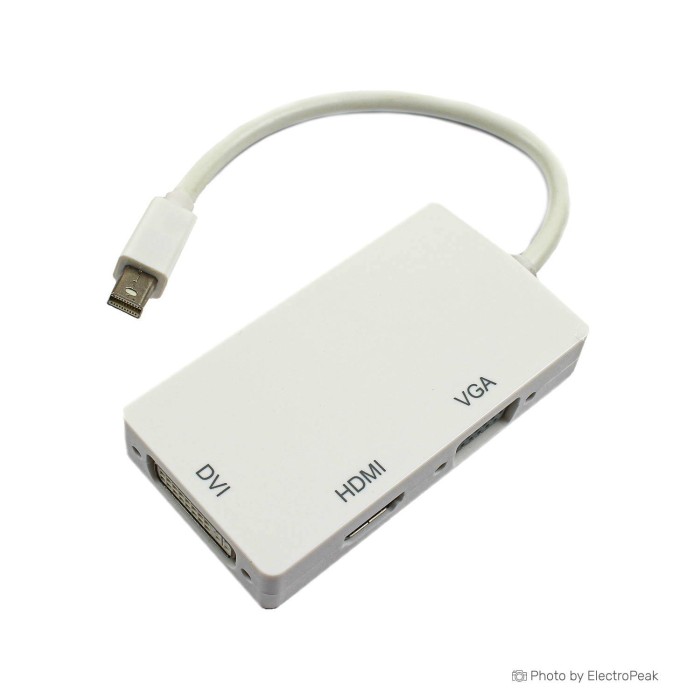

Mini DP Male To HDMI/ DVI/ VGA Female Adapter Converter

Mini DisplayPort To HDMI/DVI/VGA Adapter Converter is a multi-output adapter for Mini DisplayPort connections. It provides HDMI, DVI, and VGA output options in a single unit. The adapter supports Mini DisplayPort 1.1a input and includes automatic display connection and disconnection detection. It is powered from the Mini DisplayPort source and requires no external power supply. The cable length is 28 cm.

Features of Mini DisplayPort To HDMI/DVI/VGA Adapter Converter

• Three output options
• Mini DisplayPort 1.1a input support
• HDMI audio output support
• Automatic display detection
• Bus-powered operation

Specifications of Mini DisplayPort To HDMI/DVI/VGA Adapter Converter

• Input signal: Mini DisplayPort 1.1a
• Video output: HDMI / DVI / VGA
• Input connector: Mini DisplayPort male 20-pin
• HDMI output connector: HDMI female Type A 19-pin
• DVI connector: DVI female 24 + 1
• VGA connector: VGA female 15-pin
• Vertical frequency range: 50/60 Hz
• Video amplifier bandwidth: 2.25 Gbps / 225 MHz
• HDMI / DVI / VGA: 480i / 480p, 576p, 720p, 1080i / 1080 P
• External power supply: None
• Maximum power consumption: 700 mW
• Cable length: 28 cm

How to Use Mini DisplayPort To HDMI/DVI/VGA Adapter Converter

1. Connect the Mini DisplayPort male 20-pin plug to the source device.
2. Select the required output port: HDMI, DVI, or VGA.
3. Connect the matching display cable to the chosen female output.

More Info

• Compatible models include Mac Book Air, Mac Book Pro, iMac, Mini Mac, PC with Mini DisplayPort, and Microsoft Surface Pro 1, 2, 3.
• For Mac use, ensure the device has either a Mini DP or Thunderbolt port.
