Mini DC-DC Buck Converter 7V-16V

SAVE
As low as $1.9500
In stock
Only %1 left
SKU
BAT-02-181
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
Overvoltage Protection Module 5.5V-2.5A Previous Overvoltage Protection Module 5.5V-2.5A

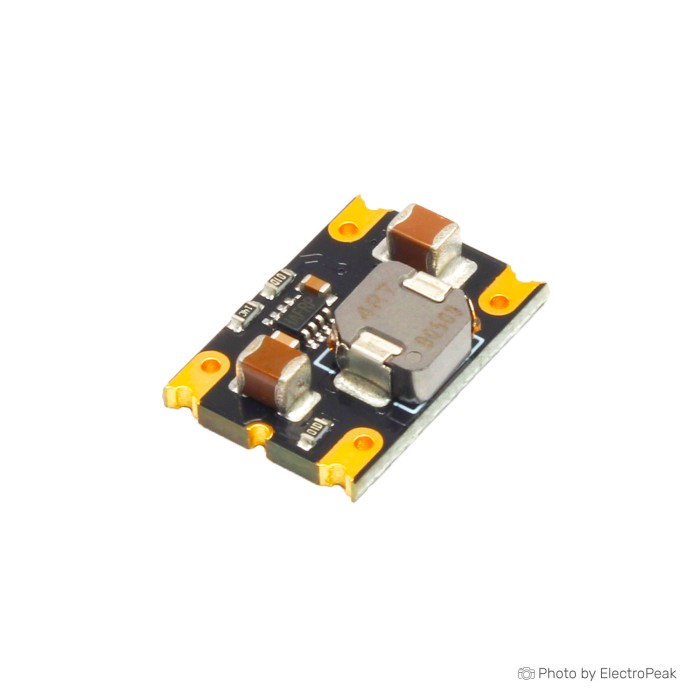

The Mini DC-DC Buck Converter is a highly efficient power module designed to step down voltages from 7V-16V to a stable 5V output, supporting up to 4A of current. Built with 2 ounces of copper cladding and utilizing an immersion gold process, this converter ensures durability and high performance with a conversion efficiency ranging from 92.7% to 98%. It is ideal for various electronic projects requiring a reliable 5V power supply but is not suitable for automotive applications due to potential overvoltage risks.

Specifications of Mini DC-DC Buck Converter

  • Input Voltage: 7V - 16V
  • Output Voltage: 5V
  • Output Current: Up to 4A
  • Conversion Efficiency: 92.7% - 98% (up to 98% at 10V input)
  • Material: 2 ounces of copper cladding, immersion gold process
  • Dimensions: 16mm x 13mm (approx.)

How to Use

  1. Input Power Quality:
    • When using an input voltage higher than 9V, add a 100uF electrolytic capacitor at the input to enhance filtering performance.
    • Consult the shopkeeper for specific details on capacitor placement and usage scenarios.
  2. Connection:
    • Connect the input voltage (7V-16V) to the input terminals of the module.
    • Connect the output terminals to your device requiring a 5V power supply.
  3. Usage Precautions:
    • Do not use this module in automotive circuits as the voltage fluctuations from a car generator can cause overvoltage and damage the chip.
    • Ensure proper heat dissipation by mounting the module in an adequately ventilated area if used at high current.
