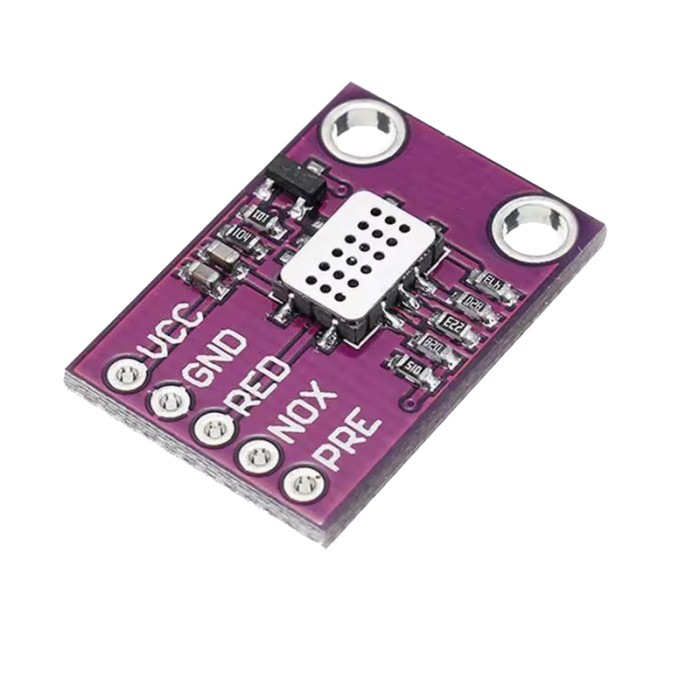

MICS-4514, CO/NO2/NH3/CH4 Gas Sensor Module
$20.9500
In stock
SKU
SEN-16-054
Volume discounts:
- +25 4 % $20.1400
- +50 6 % $19.7300
- +100 8 % $19.3300
- +300 10 % $18.9200
- +500 12 % $18.5200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Figaro TGS822 Alcohol Gas Sensor Previous
The MICS-4514 Gas Sensor Module is a gas sensor module for detecting carbon monoxide, nitrogen dioxide, ethanol, hydrogen, ammonia, methane, propane, and isobutane. It uses an I2C interface and provides an output signal of I2C (0~3V). The module is designed for operation within a broad temperature and humidity range. Its compact size supports electronics and robotics projects that require gas detection. The MICS-4514 Gas Sensor Module is suitable for environmental monitoring applications.
Features of MICS-4514 Gas Sensor Module - I2C, 0.45W
- Multi-gas detection
- I2C interface
- 0~3V output signal
- Compact module size
- Wide operating range
Specifications of MICS-4514 Gas Sensor Module - I2C, 0.45W
- Operating Voltage: DC 4.9V to 5.1V
- Power Dissipation: 0.45W (5V)
- Output Signal: I2C (0~3V)
- Interface: I2C
- Carbon monoxide (CO): 1–1000 ppm
- Nitrogen dioxide (NO₂): 0.05–10 ppm
- Ethanol (C₂H₅OH): 10–500 ppm
- Hydrogen (H₂): 1–1000 ppm
- Ammonia (NH₃): 1–500 ppm
- Methane (CH₄): >1000 ppm
- Propane (C₃H₈): >1000 ppm
- Isobutane (C₄H₁₀): >1000 ppm
- Operating Temperature: -30°C to 85°C
- Operating Humidity: 5% to 95% RH
- Dimensions: 16.9x14.1x3.2mm
How to Use MICS-4514 Gas Sensor Module - I2C, 0.45W
- Connect the module using the I2C interface.
- Apply DC 4.9V to 5.1V power.
- Read the I2C output signal for gas detection data.
More Info
- Datasheet available for additional product details.
- Arduino sample code is available.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 4.9V to 5.1V |
| Operating Current (mA) | 90 mA |
| Operating Temp (°C) | -30°C to 85°C |
| Dimensions (mm) | 16.9 x 14.1 x 3.2 mm |
| Output Type | I2C |
| Biometric Parameter | Gas Concentration |
| Target Gas | CH₄, CO, C₂H₅OH, C₃H₈, C₄H₁₀, H₂, NH₃, NO₂ |
| Detection Range | CO: 1–1000 ppm, NO₂: 0.05–10 ppm, Ethanol (C₂H₅OH): 10–500 ppm, Hydrogen (H₂): 1–1000 ppm, Ammonia (NH₃): 1–500 ppm, Methane (CH₄): >1000 ppm, Propane (C₃H₈): >1000 ppm, Isobutane (C₄H₁₀): >1000 ppm |
| Sensor Type | MOX gas sensors |
