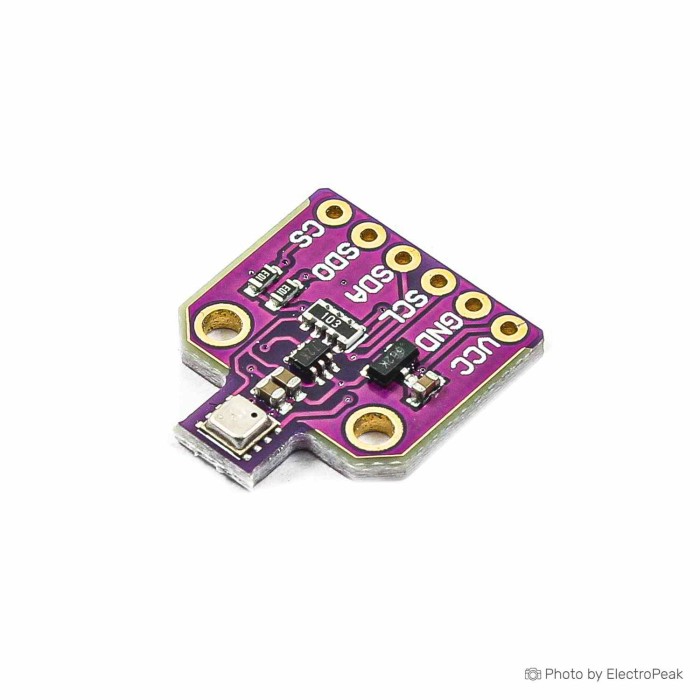

MCU-680 BME680 Temperature Humidity Pressure Sensor Module

Description
CJMCU BME680 Temperature Humidity And Pressure Sensor Module [1.71V-3.6V] [300hPa-1100hPa] is a new high compact size, low noise, and high precision 24-bits pressure detector, which is based on Bosch's BME680 Low power gas, pressure, temperature & humidity sensor chip. This chip is a multisensor digital chip that can detect and measure temperature, gas, humidity, and pressure based on the verified detection concept. The 680 chip has high accuracy and wide measurement range from -40 to +85 °C, 0 to 100% r.H., and 300 to1100 hPa. The BMP680 chip with an ultra-low height (0.9mm) and compact space is specialized for mobile phones. Beside small dimensions, this chip consumes very low power (operating current of 3.7 µA at 1 Hz humidity, pressure, and temperature), which is idealized it for battery supplied applications such as mobile phones, GPS modules, smart wearable application, smartwatches, and so on. This sensor can interface with external Arduino boards through the I²C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz) interfaces.
The BMP680 chip is built based on piezo-resistive pressure sensor with high precision, linearity treatment, long term stability, and high EMC reliability. So this sensor module is ultra-low power consumption, high precision small, stable, and EMC reliable, which make it very suitable for portable applications and can be used in IoT, indoor air quality, outdoor navigation, enhancing GPS navigation (e.g. time-to-first-fix improvement, dead-reckoning, slope detection), indoor navigation (floor detection, elevator detection),  recreation and sports applications,  weather forecasting devices, health care and medical instruments (e.g. spirometry),  vertical velocity indication (e.g. rise/sink speed).

Features
Model: CJMCU-680
Chip: BME680
Output Type: Digital
Input Voltage: 1.71V ~ 3.6V
Pressure Range: 300hPa ~ 1100hPa
Temperature Range: 0% ~100%
Humidity Range: 0% ~100%
Interface: I2C, SPI
Pin Number: 6 Pin
Size: 30mm x 14mm
