MC34063A Positive Voltage to Negative Voltage Convertor Module DC-DC
$0.8500
In stock
SKU
BAT-02-186
Volume discounts:
- +50 4 % $0.8200
- +100 6 % $0.8000
- +300 8 % $0.7800
- +500 9 % $0.7700
- +1000 12 % $0.7500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LM2596 Multi-Channel DC-DC Step-Down Power Supply Module With Digital Display Previous

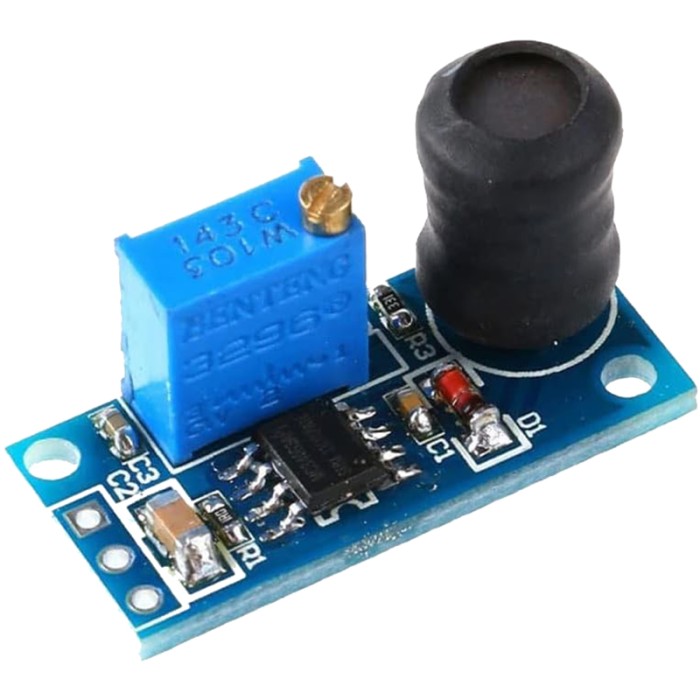

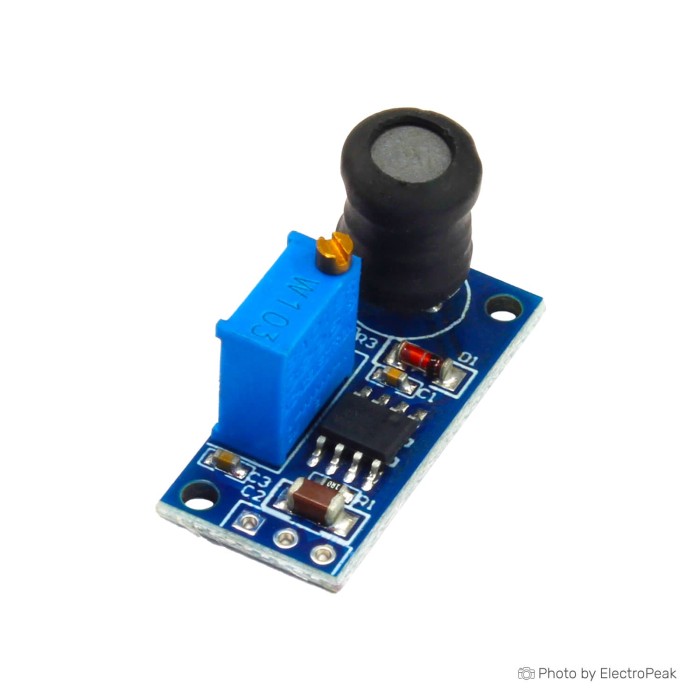

The MC34063A Positive Voltage To Negative Voltage Convertor Module is a compact DC-DC module with adjustable output voltage. It is built around the MC34063A chip and uses a potentiometer for output adjustment. The module is suitable for voltage conversion within its specified input and output ranges. Its small form factor makes it practical for electronics and robotics projects. The module supports positive to negative voltage conversion.
Features of MC34063A Positive Voltage To Negative Voltage Convertor Module
- Adjustable output voltage
- Positive to negative voltage conversion
- Compact DC-DC design
- Potentiometer adjustment
Specifications of MC34063A Positive Voltage To Negative Voltage Convertor Module
- Input voltage range: 3.6V to 30V
- Output voltage range: 3.8V to 36V
- Output voltage regulation: Load regulation rate less than 5%
- Internal switch tube capacity: 1.5A
- Recommended load power consumption: Within 0.8W
- Operation current: 160mA at 5V output
- Dimensions: ---
How to Use MC34063A Positive Voltage To Negative Voltage Convertor Module
- Connect the working voltage to VCC and GND with correct polarity.
- Adjust the output voltage by turning the potentiometer.
- Use an electrolytic capacitor larger than 100UF on both the input and output pins.
- Ensure the capacitor voltage rating exceeds the input and output voltages.
More Info
- MC34063A chip-based module
- Designed for adjustable DC-DC voltage conversion
