$4.50

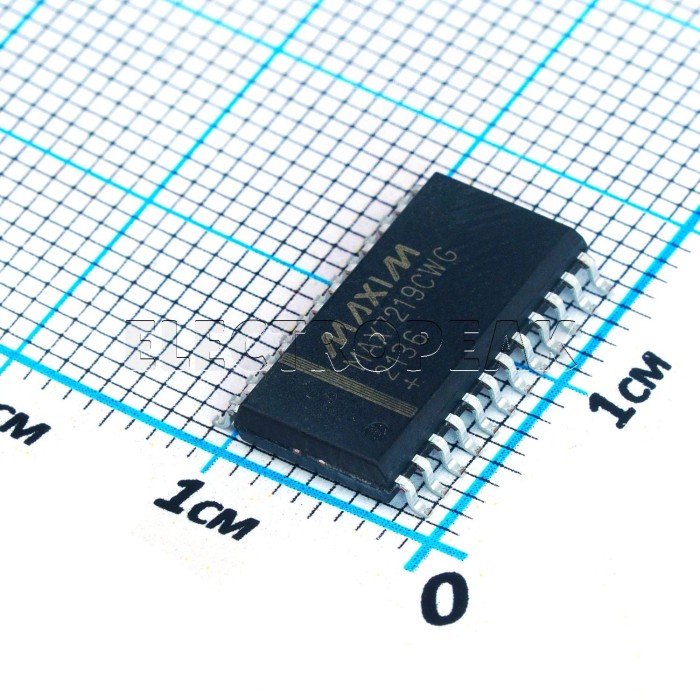

The MAX7219CWG IC is an advanced LED driver designed to control up to 64 LEDs in multi-segment or matrix displays. By reducing the need for external components and utilizing a simple serial interface, this IC enables precise and straightforward control of displays. The SO-24 package minimizes board space, making it ideal for compact devices. With features like low power consumption, adjustable output current, and noise protection, the MAX7219CWG is a perfect choice for applications such as digital signage, smart clocks, and control panels.
Specifications of MAX7219CWG LED Driver IC
- Package Type: SO-24
- Operating Voltage: 4V to 5.5V
- Current Consumption: 330mA (maximum)
- Control Capability: Up to 64 LEDs (8 digits with 7 segments or 8x8 matrix)
- Interface: Serial (SPI)
- Output Current: Adjustable for each segment
- Noise Protection: Built-in filter for reduced interference
- Operating Temperature: -40°C to +85°C
- Applications: Digital displays, signage boards, control panels, and smart devices
| Package | SO-24 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | 0 C° |
| Operating Temperature Max | +70 C° |
| Mounting Type | SMD/SMT |
| Components - Type | LED Display Drivers |
