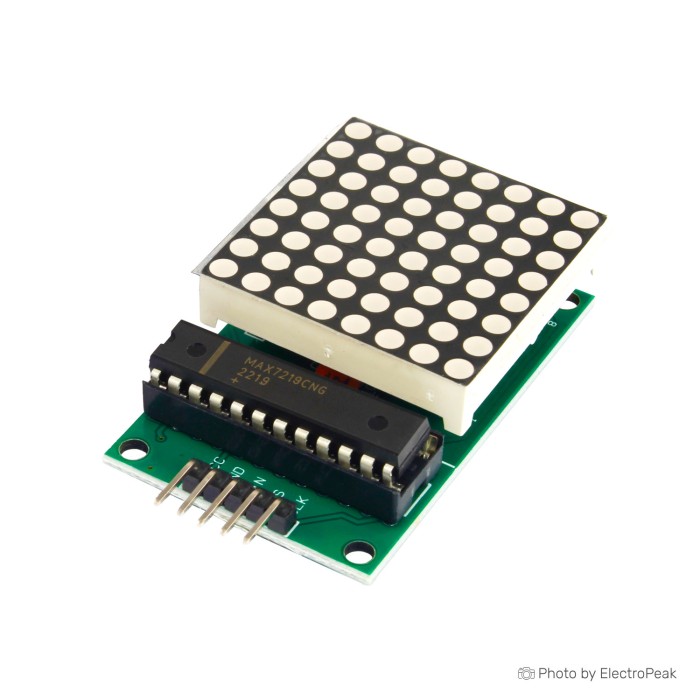

MAX7219 8x8 Dot Matrix Display Module
SAVE
As low as $1.2500
In stock
Only %1 left
SKU
LCD-01-021
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
1602 LCD Keypad Shield for Arduino Previous
The 8x8 Single-Color LED Matrix Display Module with MAX7219 driver is a widely used module in electronics projects. It's ideal for displaying characters, numbers, and simple graphics. With a simple design and efficient SPI communication using only 3 pins, it's easy to connect this module to microcontrollers like Arduino and STM32. The built-in MAX7219 driver allows easy control of all 64 LEDs, making this module perfect for digital clocks, message boards, and scrolling displays.
Specifications of 8x8 LED Matrix Display Module with MAX7219 Driver
- Input Voltage: 4.7 to 5.3 V DC (typically 5V)
- Operating Current: 320 mA (up to 2 A max)
- Control Chip: MAX7219
- Connection Pins: 3 pins (data input)
- Dimensions: 52 × 34 mm
- Working Temperature: 0°C to 50°C
- Functions: Display text, numbers, and simple graphics
- Compatibility: Suitable for Arduino, STM32, and other microcontrollers
| Platform | Arduino Mega, Arduino Uno, Arduino Nano |
|---|---|
| Display Size | 8x8 |
| Display Size Range | 1 inch to 1.99 inch |
| Display Resolution | 8x8 |
| Display Driver | MAX7219 |
| Display Interface | SPI |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | LED |
| Operating Temp (°C) | 0 to 50 °C |
| Operating Voltage (V) | 5V |
| Pins | 3 |
| Dimensions (mm) | 52 x 34 mm |
| Operating Current (mA) | 320 mA (Max current: 2 A) |
