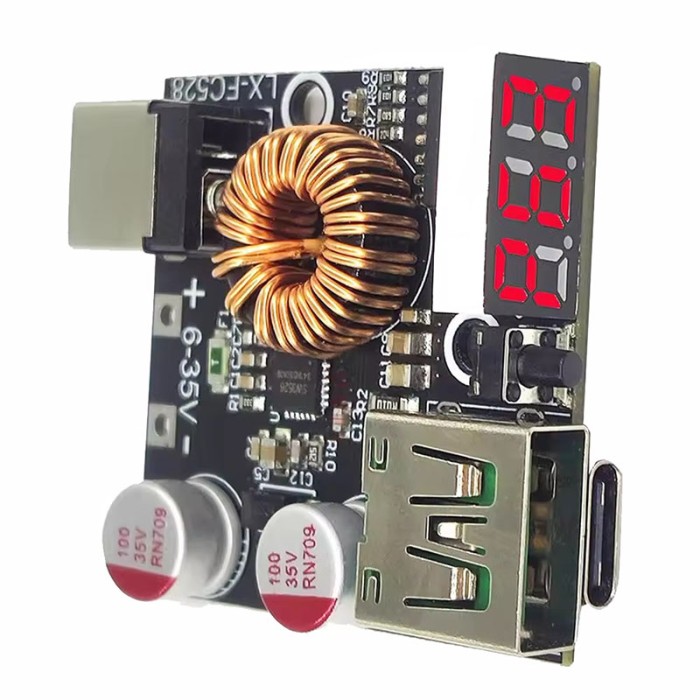

LX-FC528 QC4.0 3.0 PD Full Protocol Cell Phone Fast Charging Module w/ Display Type-C+USB

The LX-FC528 QC4.0 PD fast charging module is a compact mobile phone charging module with a dual Type-C + USB interface. It supports multiple fast charge protocols and includes a real-time digital display for voltage, current, and power. Built-in safety protections help support controlled power delivery during charging. The module offers soft-start operation and output voltage line compensation. It is available in 65W / 45W options.

Features of LX-FC528 QC4.0 PD Fast Charging Module - 65W/45W

• Dual Type-C + USB interface
• Real-time digital display
• Multiple fast charge protocol support
• Built-in protection functions
• Soft-start function
• Output voltage line compensation

Specifications of LX-FC528 QC4.0 PD Fast Charging Module - 65W/45W

• Options: 65W / 45W
• Interface: Type-C + USB dual interface
• Input Voltage Range: 6-35V
• Recommended Input Voltage: ≤33V
• Output Voltage Range: 4V-20V
• Output Voltage Adjustment: Auto-adjust based on protocol
• QC4+/QC4/QC3.0/QC2.0 supported
• PPS/PD3.0/PD2.0 supported
• AFC/FCP/SFCP supported
• MTK PE+1.1 / PE+2.0 supported
• SCP (Low & High Pressure) supported
• BC1.2 DCP supported
• Output overcurrent protection
• Input overvoltage protection
• Input undervoltage protection
• Output short circuit protection
• Display: Digital display for voltage, current, and power
• Output voltage line compensation: 50mV@1A
• Mounting Holes: 3 x 3mm positioning holes
• Board Size: 36 × 38 × 11.3mm

How to Use LX-FC528 QC4.0 PD Fast Charging Module - 65W/45W

1. Connect a 6-35V DC input through the DC interface or wire connection.
2. Use a high-quality charging cable to connect the device.
3. Press the button to switch the display between voltage, current, and power modes.
4. Use the module with its built-in protection functions for charging.

More Info

• Datasheet is not available.
• The display shows voltage by default.
