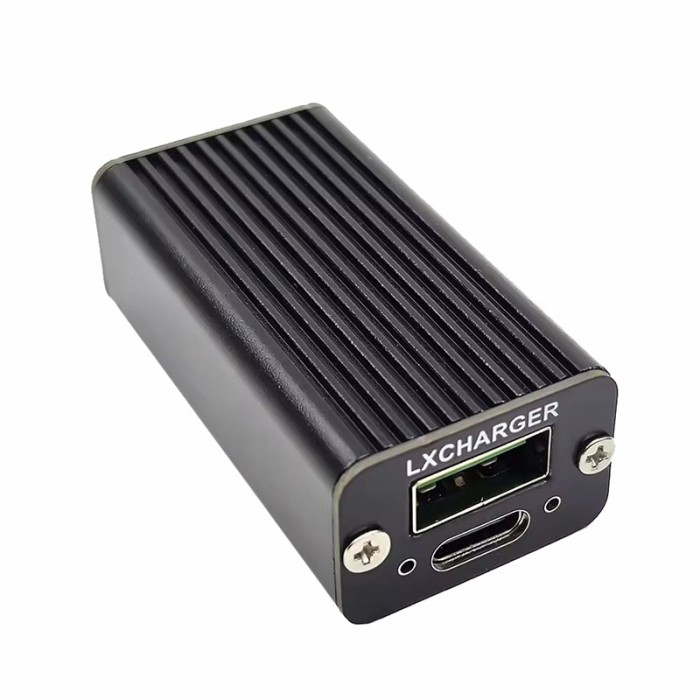

LX-Charger 100W Fast Charger Module
$14.5000
In stock
SKU
BAT-08-025
Volume discounts:
- +25 4 % $13.9200
- +50 6 % $13.6200
- +100 8 % $13.3300
- +300 10 % $13.0400
- +500 12 % $12.7500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
22.5W USB 5 Port Bidirectional Fast-charge QC4+PD3.0 Mobile Power Bank Module Previous
The LX-Charger 100W Fast Charger Module is a high-power, dual-port fast charging solution supporting multiple fast charge protocols. With USB-A and Type-C ports, it ensures broad compatibility with modern devices. The module offers intelligent power distribution, real-time protection features, and support for up to 140W PD fast charging, making it ideal for high-speed charging applications.
Specifications of LX-Charger 100W Fast Charger Module
- Ports: USB-A + Type-C dual output
- Fast Charge Protocols Supported:
- USB-A: QC3+/QC3.0/QC2.0, AFC, FCP, SCP, PE2.0, PE1.1, SFCP, TFCP, VOOC 1.0/4.0
- Type-C: PPS, PD3.0/PD2.0, QC5, QC4+, QC3+/QC3.0/QC2.0, AFC, FCP, SCP, PE2.0, PE1.1, SFCP, TFCP, VOOC 1.0/4.0
- Output Power:
- 100W PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, PPS 3.3V-21V/5A
- 140W PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/7A, PPS 3.3V-21V/6.35A
- Default State:
- Single-Port Output: Supports fast charging
- Dual-Port Output: Limited to 5V output per port with independent current limits
- Safety Features:
- Built-in fuse for protection
- Reverse connection protection
- Note: No overvoltage protection—confirm input voltage before use
- Power Supply Requirement: Recommended 100W+ PD-compatible input power source
How to use of LX-Charger 100W Fast Charger Module
- Power Input: Ensure a proper PD power source (100W+ recommended) is connected to the module.
- Device Connection:
- For USB-A port, use a compatible fast-charging cable for SCP, VOOC, and other protocols.
- For Type-C port, ensure your device and cable support the desired fast charge protocol.
- Charging Modes:
- Single-port mode: Provides fast charging according to device compatibility.
- Dual-port mode: Both ports default to 5V output with separate current limits.
- Safety Precautions: Verify input voltage before wiring to avoid module damage.
Datasheet of LX-Charger 100W Fast Charger Module
Not available.
| Function | Super Fast Charging Module |
|---|---|
| Input Voltage (V) | 100W+ PD-compatible input |
| Output Voltage (V) | 5V, 9V, 12V, 15V, 20V, PPS 3.3V-21V |
| Output Current (A) | 7A |
| Connector | USB-A, Type-C |
| Fast Charge Protocol | Qualcomm QC4+/QC4.0/QC3.0, Huawei SCP/FCP, OPPO VOOC, Apple 2.4A, Samsung AFC, OnePlus DASH, VIVO 9V2A, PD3.0 |
| USB Connector | USB Type-A, USB Type-C |
| Port Configuration | 1x USB, 1x USB Type C |
| Protection | Built-in fuse,Reverse connection protection |
