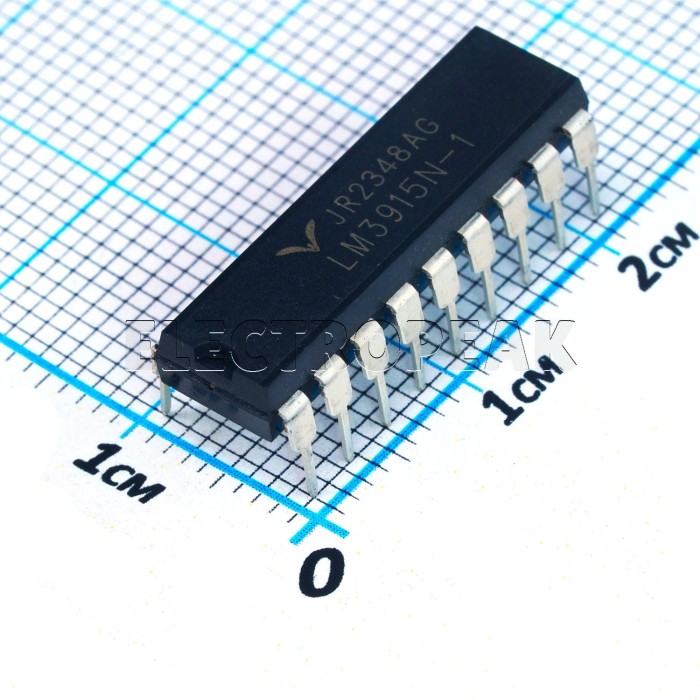

LM3915N-1, LED Lighting Driver, DIP-18
$0.2850
In stock
SKU
S1-0069
Volume discounts:
- +100 4 % $0.2740
- +500 6 % $0.2690
- +1000 7 % $0.2640
- +5000 9 % $0.2580
- +10000 11 % $0.2530
LM3915N-1, LED Lighting Driver, DIP-18 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in10-15 days by YunExpress on orders over $35.
Free delivery in5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
HX4004A, Power Management IC, SOT-23-6 Previous
The LM3915N-1 is a linear display driver IC designed to graphically represent analog values. This IC senses analog voltages and controls ten LEDs, LCDs, or vacuum fluorescent displays in either dot or bar modes. These features make it ideal for applications such as audio level meters, signal level indicators, and other analog displays.
Specifications of LM3915N-1 Linear Display Driver IC
- Input Voltage: 0 to 25V
- Internal Reference Voltage: 1.2 to 12V
- Display Mode: Selectable between dot and bar
- Input Range: Expandable up to 90 dB
- Package: DIP-18
- Features: Inputs can operate down to ground, outputs are current-regulated and can directly drive TTL or CMOS.
| Package | DIP-18 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | 0 C° |
| Operating Temperature Max | +70 C° |
| Mounting Type | Through Hole |
| Components - Type | LED Lighting Drivers |
