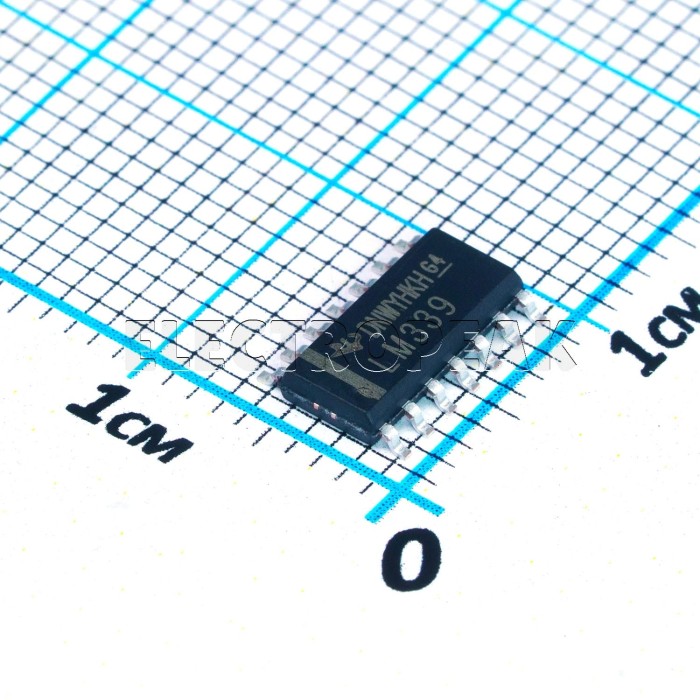

LM339D, Analog Comparator, SO-14

$0.0290
In stock
SKU
S1-0016
Volume discounts:
  • +500 4 % $0.0279
  • +1000 6 % $0.0273
  • +5000 8 % $0.0268
  • +10000 10 % $0.0262
  • +20000 11 % $0.0257
LM339D, Analog Comparator, SO-14 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
LM339N, Analog Comparator, DIP-14 Previous LM339N, Analog Comparator, DIP-14

The LM339D is a low-power quad voltage comparator IC available in an SO-14 package. This chip comprises four independent comparators capable of operating from a single or dual power supply. It is designed to interface directly with TTL and CMOS logic levels.

Specifications of LM339D Voltage Comparator IC

  • Supply Voltage: 3V to 36V (single supply) or ±1.5V to ±18V (dual supply)
  • Input Bias Current: 25 nA (typical)
  • Input Offset Current: ±5 nA (typical)
  • Input Offset Voltage: ±1 mV (typical)
  • Input Common-Mode Voltage Range: Includes ground
  • Output Saturation Voltage: 130 mV (typical) at 4 mA
  • TTL and CMOS Compatible

These features make the LM339D suitable for applications such as level detection, low-level sensing, and memory in consumer, automotive, and industrial electronic devices.

Datasheet of LM339D Voltage Comparator IC

For detailed technical information, refer to the LM339D Datasheet.

More Information
Package SO-14
Packaging Tape & Reel
Operating Temperature Min 0 C°
Operating Temperature Max 70 C°
Mounting Type SMD/SMT
Components - Type Analog Comparators
