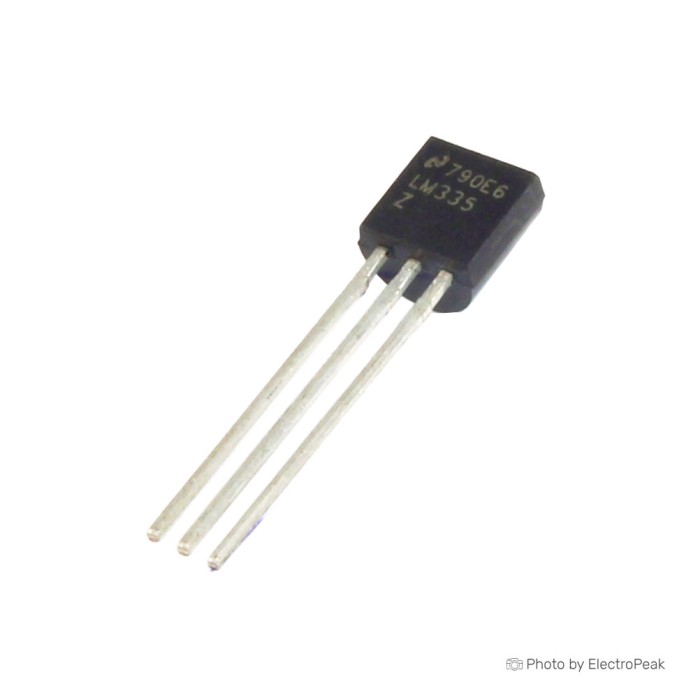

LM335 Temperature Sensor
$0.2900
In stock
SKU
SEN-10-080
Volume discounts:
- +100 3 % $0.2800
- +500 7 % $0.2700
- +5000 10 % $0.2600
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HR202L Humidity Resistance Sensor Module Previous
The LM335 Temperature Sensor is a semiconductor temperature sensor for accurate temperature measurement. It is calibrated to the kelvin temperature scale and offers an initial accuracy of 1°C. The sensor has a dynamic impedance of less than 1 ohm and is designed for straightforward calibration. It is supplied in a TO-92 or similar package. The LM335 Temperature Sensor is suitable for applications that require stable temperature sensing and direct analog output behavior.
Features of LM335 Temperature Sensor - TO-92, -40 To 100°C
- Semiconductor temperature sensing
- Kelvin-scale calibration
- 1°C initial accuracy
- Dynamic impedance below 1 ohm
- TO-92 or similar package
Specifications of LM335 Temperature Sensor - TO-92, -40 To 100°C
- Temperature range: -40 to 100°C
- Accuracy: ±1°C
- Output impedance: less than 1 ohm
- Operating voltage: 4 to 30 volts
- Output voltage: 10 millivolts per kelvin
- Operating current: less than 1 milliamp
- Package type: TO-92 or similar
- Calibration: adjustable for higher accuracy
- Dynamic impedance: less than 1 ohm
- Over range: 200°C
- Initial accuracy available: 1°C
- Directly calibrated to kelvin temperature scale
- Operating current range: 400uA to 5mA
- Reverse current: 15mA
- Forward current: 10mA
- Operating output voltage: 2.95V to 3.01V
- Temperature error at 25°C: 2°C max
- Thermal resistance: 202°C/W
- Specified temperature range: -40 to 100°C
- Storage temperature range: -60 to 150°C
How to Use LM335 Temperature Sensor - TO-92, -40 To 100°C
- Connect the positive pin to the supply.
- Connect the negative pin to ground.
- Connect the output pin to an ADC input or voltmeter.
- Use a trimming resistor in the circuit if higher accuracy is required.
More Info
- The sensor provides a three-pin connection.
- The output voltage changes with ambient temperature.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 4 to 30 V |
| Operating Current (mA) | less than 1 mA |
| Operating Temp (°C) | -40 to 100°C |
| Mounting Type | THT (Through Hole) |
| Output Type | Analog Voltage |
| Accuracy | ±1°C |
| Measurement Range | -40 to 100°C |
| Environmental Parameter | Temperature |
| Probe Type | Contact |
| Chipset | LM335 |
| Relay Output | No |
| Temp Accuracy | ±1°C |
