$2.50

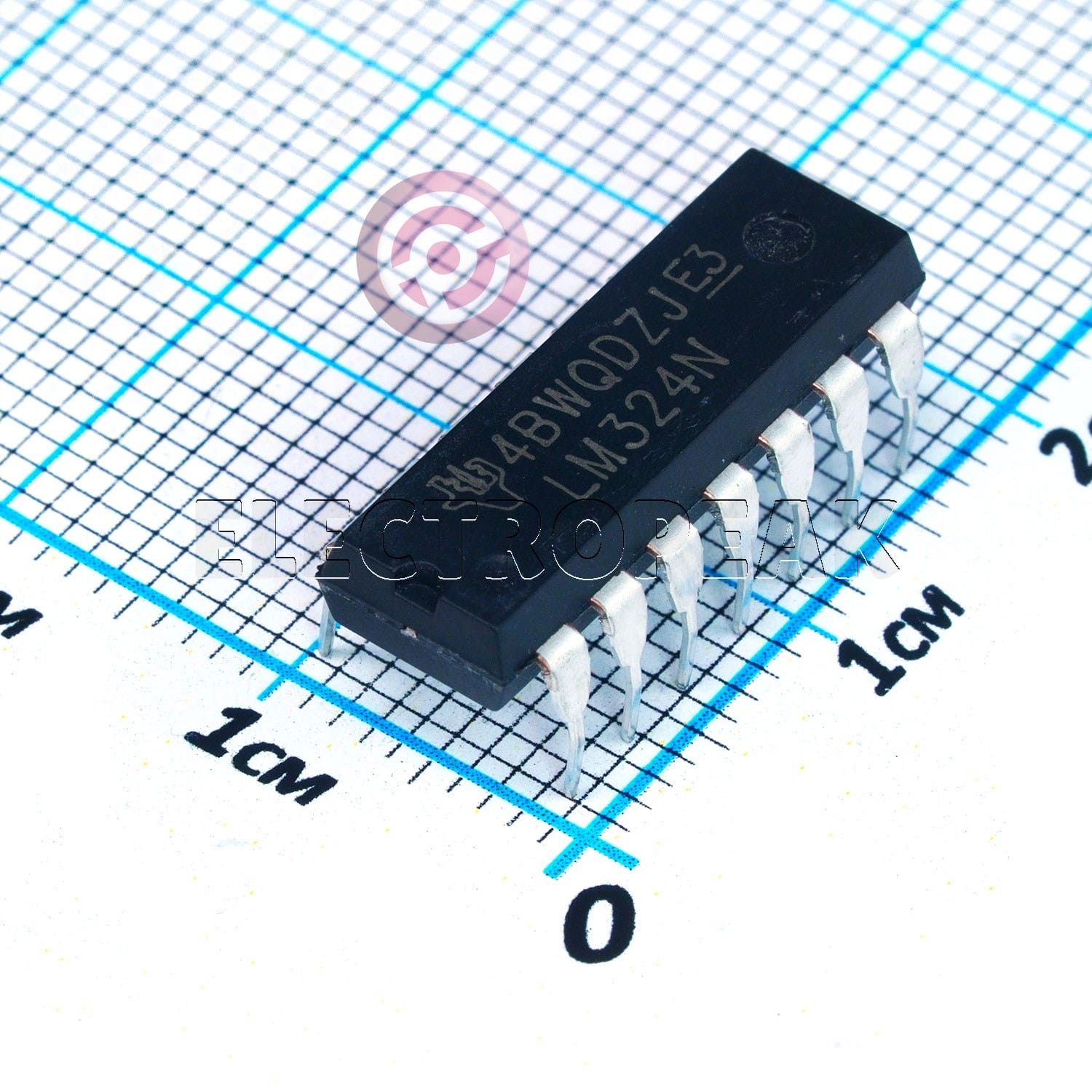

The LM324N is a quad operational amplifier with true differential inputs, housed in a 14-pin DIP package. It operates with a single supply voltage from 3V to 32V or a dual supply of ±1.5V to ±16V. The IC features a bandwidth of 1 MHz and a slew rate of 0.5 V/µs. These characteristics make it suitable for general applications such as signal amplification, filtering, and analog circuits.
Specifications of LM324N Operational Amplifier IC DIP-14
- Operating Voltage: 3V to 32V (single supply) or ±1.5V to ±16V (dual supply)
- Operating Current: Maximum 180 µA per amplifier
- Bandwidth (GBW): 1 MHz
- Slew Rate: 0.5 V/µs
- Input Offset Voltage: Maximum 7 mV
- Input Bias Current: Maximum 250 nA
- Dimensions: LxWxHmm
| Package | DIP-14 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | 0 C° |
| Operating Temperature Max | +70 C° |
| Gain Bandwidth Product fT | 1.2 MHz |
| Mounting Type | Through Hole |
| Components - Type | Operational Amplifiers - Op Amps |
