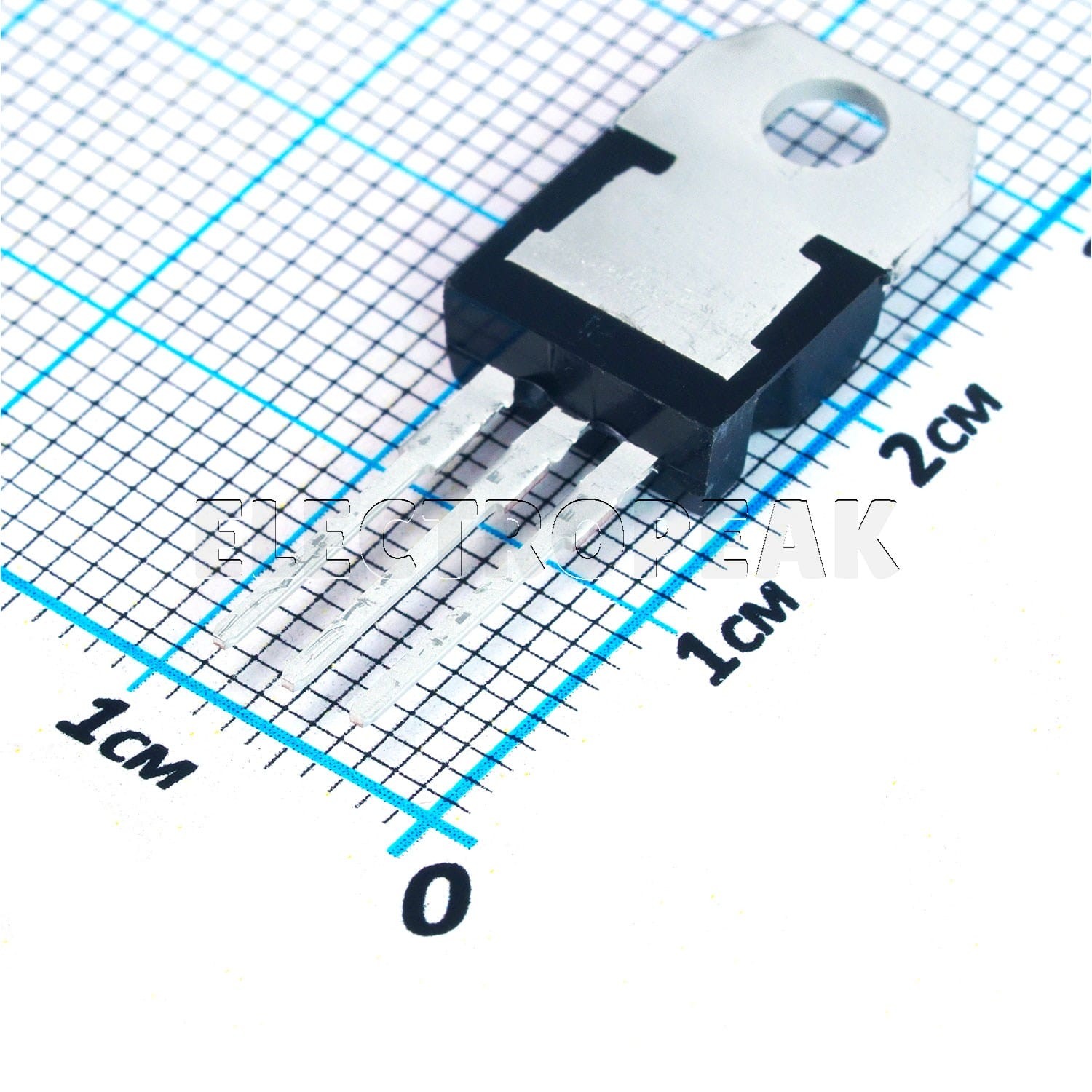

LM317T, LDO Voltage Regulator, TO-220AB-3

[S1-0075]
Volume discounts:
  • +100 4 % $0.1060
  • +500 5 % $0.1040
  • +1000 8 % $0.1010
  • +5000 10 % $0.0990
  • +10000 12 % $0.0970
Shop with confidence Learn More
Availability: 17850 items
SKU
S1-0075
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.1100
LM317T, LDO Voltage Regulator, TO-220AB-3 is available to buy in increments of 10

The LM317T is an adjustable positive voltage regulator IC capable of supplying more than 1.5 amperes of load current with an output voltage adjustable over a 1.2-volt to 37-volt range. It uses two external resistors to set the output voltage and includes internal protections such as current limiting, thermal overload protection, and safe operating area compensation. This IC comes in a TO-220AB-3 package, suitable for mounting on printed circuit boards.

Specifications of LM317T Adjustable Positive Voltage Regulator IC

  • Input Voltage Range: 3 volts to 40 volts
  • Output Voltage Range: 1.2 volts to 37 volts
  • Output Current: More than 1.5 amperes
  • Noise:  38 µVrms
  • Internal Protections: Current limiting, thermal overload protection, safe operating area compensation
  • Package: TO-220AB-3
More Information
Package TO-220AB-3
Operating Temperature Min 0 C°
Operating Temperature Max +125 C°
Mounting Type Through Hole
Components - Type LDO Voltage Regulators
