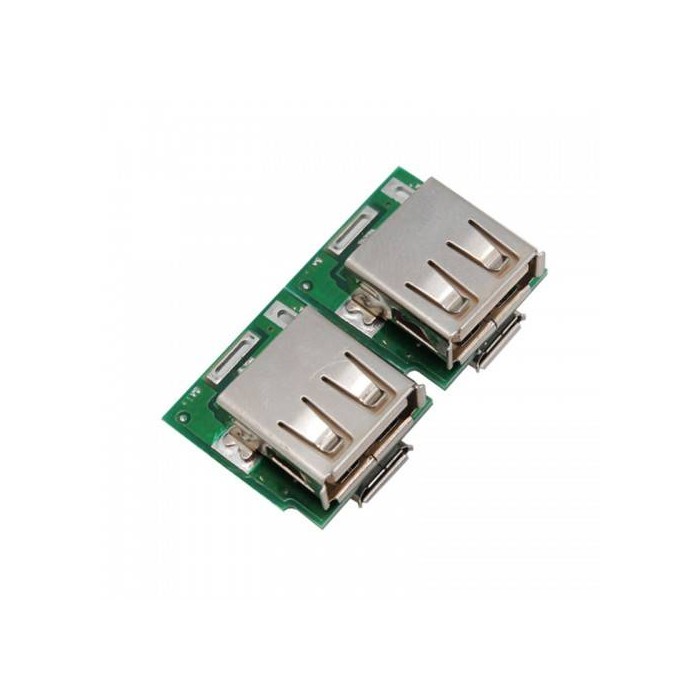

SY3500 Lithium Battery Charging/Discharging Power Bank Module - 3.7V to 5V, 1A
$0.3600
In stock
SKU
BAT-03-056
Volume discounts:
- +100 3 % $0.3500
- +500 6 % $0.3400
- +1000 8 % $0.3300
- +10000 11 % $0.3200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XH-M609 Lithium Battery Discharging Control Module - 6-60V Previous
The SY3500 Lithium Battery Charging/Discharging Power Bank Module is a lithium battery charge and discharge module for power bank builds and portable electronics. It provides a 5V output and supports charging through a Micro USB port. The module is designed for use with high-capacity cylindrical lithium-ion batteries. It includes intelligent overcharge control, over discharge protection, and short circuit protection. The SY3500 module can be used without a button or switch, and charging current is adjusted automatically.
Features of SY3500 Lithium Battery Charging/Discharging Power Bank Module - 5V, 1A
- 5V input support
- 5V output support
- 500~800mA charging current
- 1A discharge current
- Micro USB charging port
- USB output port
- Intelligent overcharge control
- Over discharge protection
- Short circuit protection
Specifications of SY3500 Lithium Battery Charging/Discharging Power Bank Module - 5V, 1A
- Input Voltage: 5V / 1A
- Output Voltage: 5V
- Charging Current: 500~800mA
- Discharge Current: 1A
- Batteries: High-capacity cylindrical lithium-ion battery
- Intelligent control overcharge: Yes
- Over discharge: Yes
- Short circuit protection circuit: Yes
- Use 18650 flat head battery voltage to 3.2-4.2V
How to Use SY3500 Lithium Battery Charging/Discharging Power Bank Module - 5V, 1A
- Connect a 5V power source to the charging input.
- Connect the lithium battery to the module.
- Use the USB output to power the connected device.
More Info
- Suitable for power bank construction.
- Designed for portable electronic devices.
- Charging current is automatically regulated.
| Compatible With | High-capacity cylindrical lithium-ion battery |
|---|---|
| Chipset | SY3500 |
| Function | Power Bank |
| Charging Voltage (Pack) | 5V |
| Supported Battery Type | Li-ion |
| Cell Count | 1 |
| Input Voltage (V) | 5V |
| Output Voltage (V) | 5V |
| Output Current (A) | 1A |
| Connector | USB, Micro USB |
| Max Charging Current | 1A |
| USB Connector | USB, Micro USB |
| Port Configuration | USB |
| Protection | Overvoltage Protection,Short Circuit Protection,Overcharge Protection,Over-discharge Protection |
| Operating Temp (°C) | -20 to 60 |
