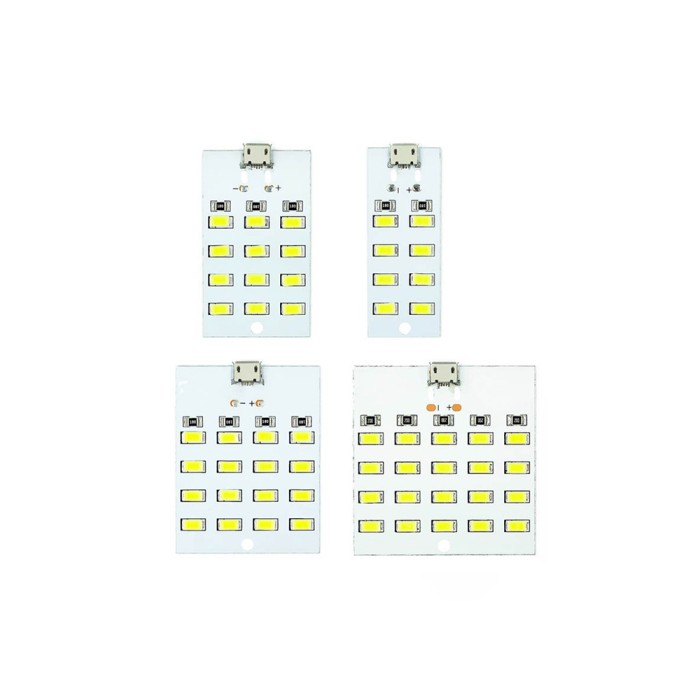

Lighting Board USB 8/12/16/20 Lamp
SAVE
As low as $0.2300
In stock
Only %1 left
SKU
ELC-02-106
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Neon Bulb 5mm Warm White Previous
The light board uses high-quality lamp beads, the substrate is aluminum substrate, and the power supply interface uses MICRO USB, which is convenient to connect to ordinary mobile phone chargers and mobile power supply. The set working current is relatively large, and the current value is 430mA~470mA, which can ensure sufficient brightness, and has a better heat dissipation design, so that the temperature is too high. The matching current - limiting resistance adopts 1210 large packages, and the single 0805 small packaged resistance
Specifications of LED Lighting Board USB:
- power supply : micro USB
- LED type : 1210 SMD
- Num of LEDs : 8/12/16/20 LEDs (Optional)
- size :
- 8LED 20x52
- 12LED: 30x52
- 16LED: 40x52
- 20LED: 50x52
| Interface Type | USB |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 430mA-470mA |
| Dimensions (mm) | 20x52 mm, 30x52 mm, 40x52 mm, 50x52 mm |
| Channel Count | 8/12/16/20 LED |
| Display Type | LED |
| Material | Aluminum |
| Input Type (AC/DC) | DC |
