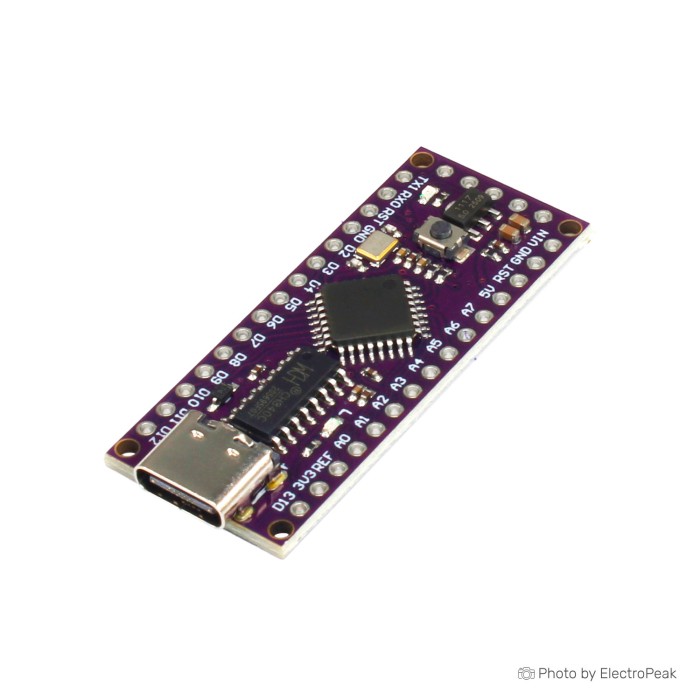

LGT8F328P Development Board- CH340- Type-C
$1.7500
In stock
SKU
ARD-01-067
Volume discounts:
- +50 4 % $1.6800
- +100 6 % $1.6500
- +300 8 % $1.6100
- +500 10 % $1.5800
- +1000 11 % $1.5500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Arduino Giga R1 Wifi Development Board Previous
The LGT8F328P Development Board - CH340 - Type-C is a versatile and high-performance microcontroller board featuring the LGT8F328P microcontroller, a powerful and advanced version of the Atmel AVR ATmega328P used in Arduino Nano. This board offers enhanced capabilities, including higher speed, a higher-resolution analog-to-digital converter, and an integrated digital-to-analog converter. It is fully compatible with both the Arduino IDE and LGT MCU IDE, making it an excellent choice for prototyping, experimentation, and development for both beginners and experienced developers.
Specifications of LGT8F328P Development Board - CH340 - Type-C
- Microcontroller (MCU): LGT8F328P (8-bit RISC architecture)
- USB Interface: Type-C
- Driver: CH340C
- Flash Memory: 32 Kbytes
- SRAM: 2 Kbytes
- Clock Frequency: 16 MHz (Maximum 32 MHz)
- Registers: 32 x 8-bit (R0 to R31)
- Timers/Counters:
- Two 8-bit Timer/Counters (Prescaler or Compare mode)
- Two 16-bit Timer/Counters (Prescaler, Compare, or Capture modes)
- PWM Channels: 9
- ADC (Analog-to-Digital Converter): 12-bit resolution
- DAC (Digital-to-Analog Converter): 8-bit resolution
- WDT (Watchdog Timer): Programmable
- System Logic Level: Factory set to 3.3V (switchable to 5V via pad)
- Supported Interfaces:
- USART
- SPI
- I2C
- TWI
Datasheet of LGT8F328P Development Board - CH340 - Type-C
| MCU/SoC | LGT8F328P |
|---|---|
| Product Family | Arduino |
| Architecture | 8-bit RISC |
| CPU Cores | 1 |
| Clock Speed (MHz) | 16 MHz (Maximum 32 MHz) |
| Flash | 32 Kbytes |
| SRAM | 2 Kbytes |
| EEPROM | 1 Kbytes |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 1 |
| USB Ports | Type-C |
| Ethernet Support | No |
| ADC Channels | 12-bit resolution |
| DAC Channels | 8-bit resolution |
| PWM Channels | 9 |
| Timers Count | Two 8-bit Timer/Counters, Two 16-bit Timer/Counters |
| Operating Voltage (V) | 3.3V, 5V |
| GPIO Voltage (V) | 3.3V, 5V |
| Wireless | No |
| IDE Support | Arduino IDE, LGT MCU IDE |
| Antenna Type | No |
| Bluetooth Ver. | No |
