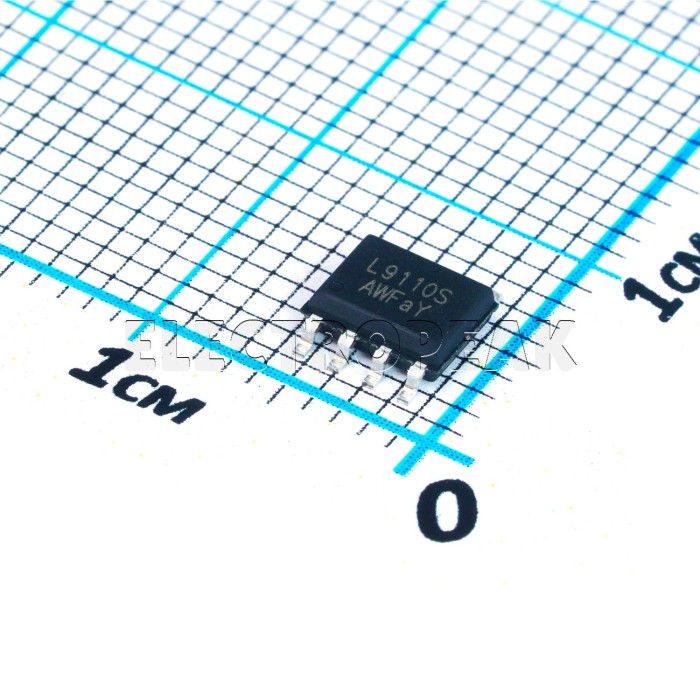

L9110S, Motor / Motion / Ignition Controller & Driver, SO-8 (SOP-8)
$0.1100
In stock
SKU
S1-0001
Volume discounts:
- +500 9 % $0.1000
L9110S, Motor / Motion / Ignition Controller & Driver, SO-8 (SOP-8) is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The L9110S is a dual-channel motor driver IC in an SOP-8 package for DC and stepper motor control. It is designed for electronics, robotics, and automation applications that require motor switching and drive control. The L9110S supports a wide supply range and offers strong output current per channel. Its TTL/CMOS input compatibility makes it suitable for standard logic-level control. The low output saturation voltage supports efficient drive operation. The compact SOP-8 package keeps the footprint small for dense PCB designs.
Features of L9110S Dual-Channel Motor Driver IC - SOP-8
- Dual-channel motor driver
- DC and stepper motor control
- Wide supply range
- TTL/CMOS input compatibility
- Low output saturation voltage
Specifications of L9110S Dual-Channel Motor Driver IC - SOP-8
- Supply Voltage: 2.5V to 12V
- Continuous Output Current per Channel: 800mA
- Peak Output Current per Channel: 1.5A to 2A
- Output Saturation Voltage: Low
- Input Compatibility: TTL/CMOS levels
- Operating Temperature Range: 0°C to 80°C
- Dimensions: 4.9mm x 3.9mm x 1.5mm
How to Use L9110S Dual-Channel Motor Driver IC - SOP-8
- Connect the supply within the 2.5V to 12V range.
- Apply TTL/CMOS control signals to the input pins.
- Use the output channels to drive the motor connection.
More Info
- Package: SOP-8
- Dual-channel motor driver IC
| Package | SO-8 (SOP-8) |
|---|---|
| Packaging | Tape & Reel |
| Mounting Type | SMD/SMT |
| Components - Type | Motor / Motion / Ignition Controllers & Drivers |
