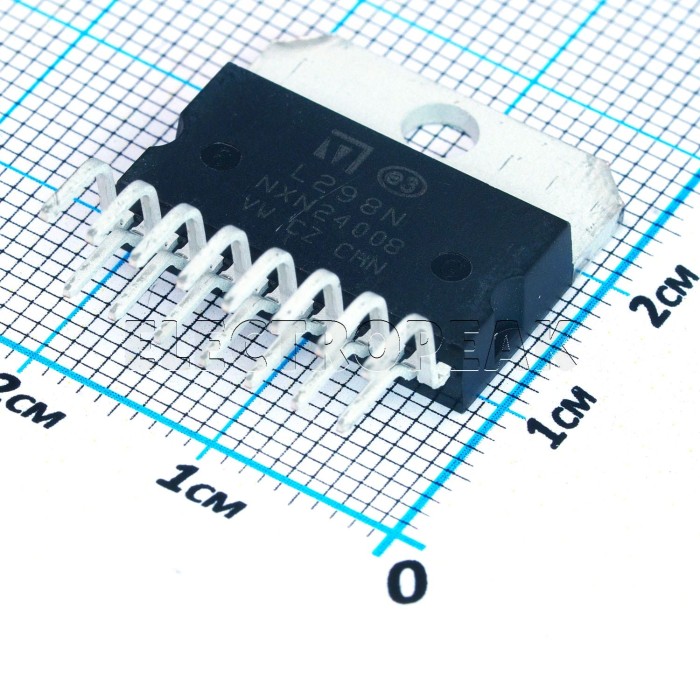

L298N, Motor / Motion / Ignition Controller & Driver, Multiwatt-15
$0.7500
In stock
SKU
S1-0002
Volume discounts:
- +100 7 % $0.7000
- +300 8 % $0.6900
- +500 11 % $0.6700
- +1000 12 % $0.6600
L298N, Motor / Motion / Ignition Controller & Driver, Multiwatt-15 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
L9110S, Motor / Motion / Ignition Controller & Driver, SO-8 (SOP-8)
Previous
The L298N is a high-voltage, high-current dual full-bridge motor driver IC in a Multiwatt-15 package, designed for controlling DC and stepper motors. It accepts standard TTL logic levels, enabling control of inductive loads such as relays, solenoids, and stepping motors. Features like overtemperature protection and low saturation voltage make it ideal for robotics and automation systems.
Specifications of L298N Dual Full-Bridge Motor Driver IC
- Operating Supply Voltage: Up to 46V
- Total DC Current: Up to 4A
- Output Saturation Voltage: Low
- Overtemperature Protection: Yes
- Logical Input Compatibility: TTL levels
- Dimensions: 20.0mm x 5.3mm x 10.0mm
Datasheet
For detailed technical information, refer to the L298 Datasheet.
| Package | Multiwatt-15 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -25 C° |
| Operating Temperature Max | 130 C° |
| Mounting Type | Through Hole |
| Components - Type | Motor / Motion / Ignition Controllers & Drivers |
