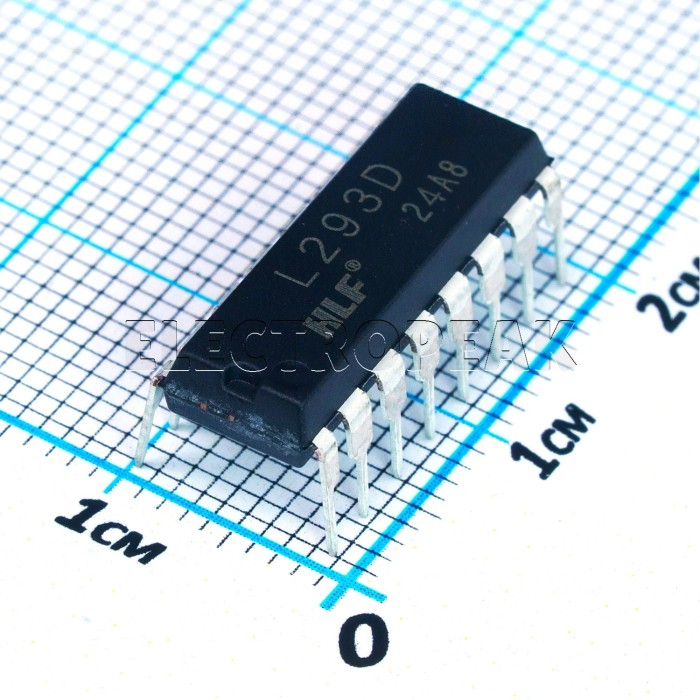

L293D, Motor / Motion / Ignition Controller & Driver, DIP-16
$0.1800
In stock
SKU
S1-0003
Volume discounts:
- +100 6 % $0.1700
- +5000 11 % $0.1600
L293D, Motor / Motion / Ignition Controller & Driver, DIP-16 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The L293D is a quadruple high-current half-H driver IC in a DIP-16 package, designed for controlling DC and stepper motors. It accepts standard TTL logic levels, enabling control of inductive loads such as relays, solenoids, and stepping motors. Features like overtemperature protection and low saturation voltage make it ideal for robotics and automation systems.
Specifications of L293D Quadruple High-Current half-H Driver IC
- Operating Supply Voltage: 4.5V to 36V
- Continuous Output Current per Channel: 600mA
- Peak Output Current per Channel: 1.2A
- Output Saturation Voltage: Low
- Overtemperature Protection: Yes
- Logical Input Compatibility: TTL levels
- Dimensions: 27.2mm x 7.62mm x 3.3mm
Datasheet of L293D
For detailed technical information, refer to the L293D Datasheet.
| Package | DIP-16 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | 150 C° |
| Operating Temperature Max | 150 C° |
| Mounting Type | Through Hole |
| Components - Type | Motor / Motion / Ignition Controllers & Drivers |
