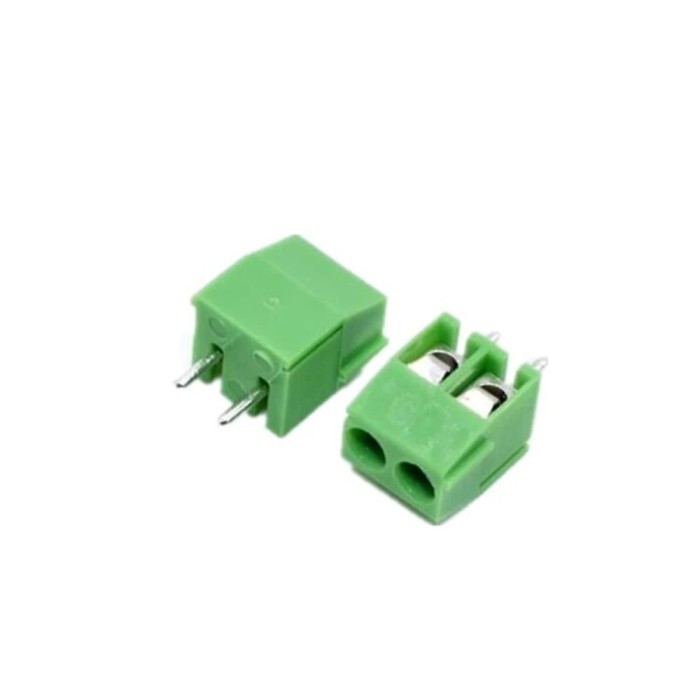

KF350 PCB Screw Terminal Block- Green

The KF350 PCB Screw Terminal Block - Green is designed for secure wiring on printed circuit boards. It provides a compact screw terminal solution for electrical projects and PCB connections. The green body supports quick identification during assembly. This terminal block is available in 2-pin and 3-pin versions. It features a 3.5mm pitch and supports wire sizes from 24 to 18 AWG. The rated voltage is 300V, and the rated current is 10A.

Features of KF350 PCB Screw Terminal Block - Green

• Secure screw terminal connection
• 2-pin and 3-pin versions
• 3.5mm pitch
• Green color for easy identification
• 24 to 18 AWG wire support
• 300V rated voltage
• 10A rated current

Specifications of KF350 PCB Screw Terminal Block - Green

• Type: KF-350
• Pin: 2Pin, 3Pin
• Pitch: 3.5mm
• Color: Green
• Rated Voltage: 300V
• Rated Current: 10A
• Wire Range: 24-18 AWG

How to Use KF350 PCB Screw Terminal Block - Green

1. Select the required pin version.
2. Insert the prepared wire into the terminal.
3. Tighten the screw terminal to secure the connection.

More Info

• Suitable for printed circuit board wiring.
• Compact form factor for PCB applications.
