- +25 4 % $23.03
- +50 6 % $22.57
- +100 8 % $22.12
- +300 10 % $21.66
- +500 11 % $21.20
The Keyless Entry PKE Module is an advanced access control system that utilizes active RFID technology for seamless, keyless entry. It operates by detecting an inductive card within a specified range of the receiving motherboard, activating a relay until the card moves out of range. The sensing distance is adjustable, making it adaptable to different environments. With its easy integration into existing access control systems, this module offers enhanced convenience without requiring system modification. It's ideal for applications such as secure building access or vehicle entry.
Specifications of Keyless Entry PKE Module
-
Sensing Distance: Adjustable between 0.1m to 10m (dependent on environment)
-
Relay Operation: Activates when card is within range, deactivates after 6 seconds out of range (customizable)
-
Power Supply: Connects to the power of the access control machine
-
Battery Type: CR2032 (Induction card battery life up to 1 year)
-

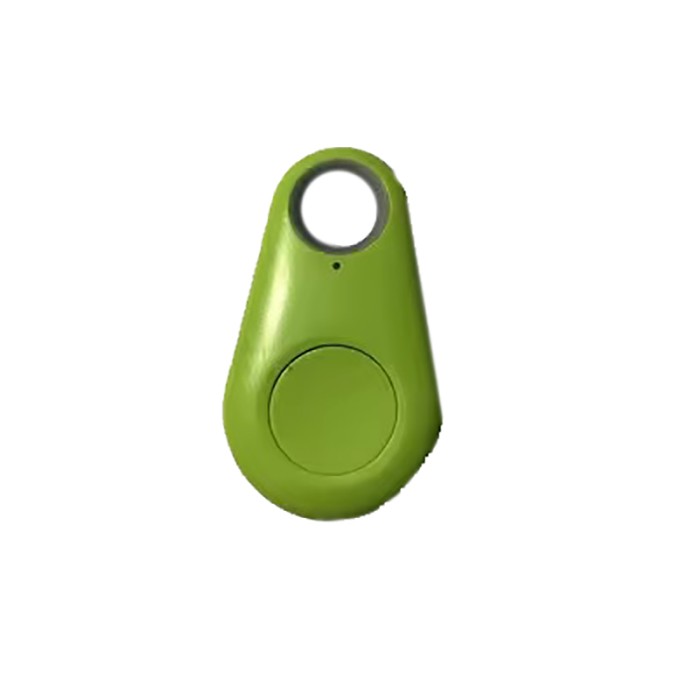

Induction Card Functions: On/off toggle for the induction function to conserve battery
How to use of Keyless Entry PKE Module
-
Turn off the induction function: Press and hold the button on the induction card for 5 seconds. The light will flash three times, indicating it's off.
-
Turn on the induction function: Short press the button for 1 second. The light will blink once, indicating it's on.
-
Adjust the sensing distance: Use the potentiometer on the receiving board to adjust the sensing range between 0.1 to 10 meters.
Datasheet of Keyless Entry PKE Module
Datasheet: Not available
