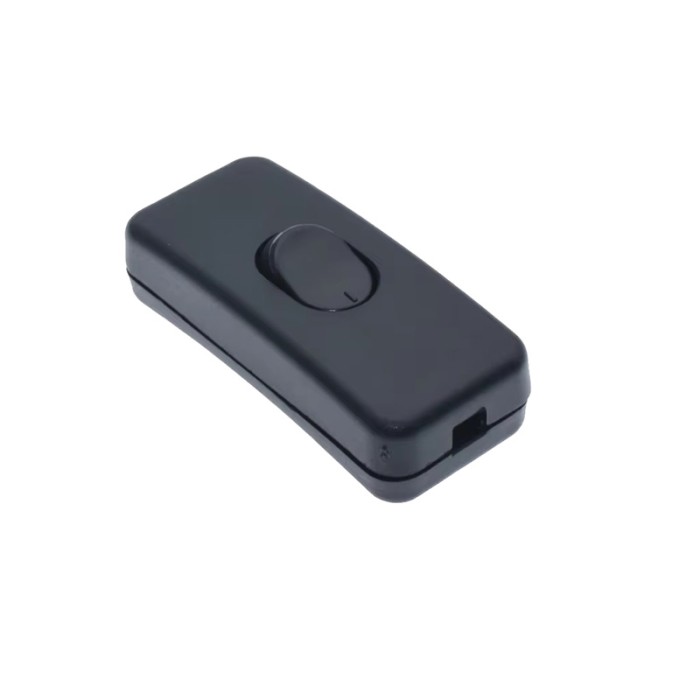

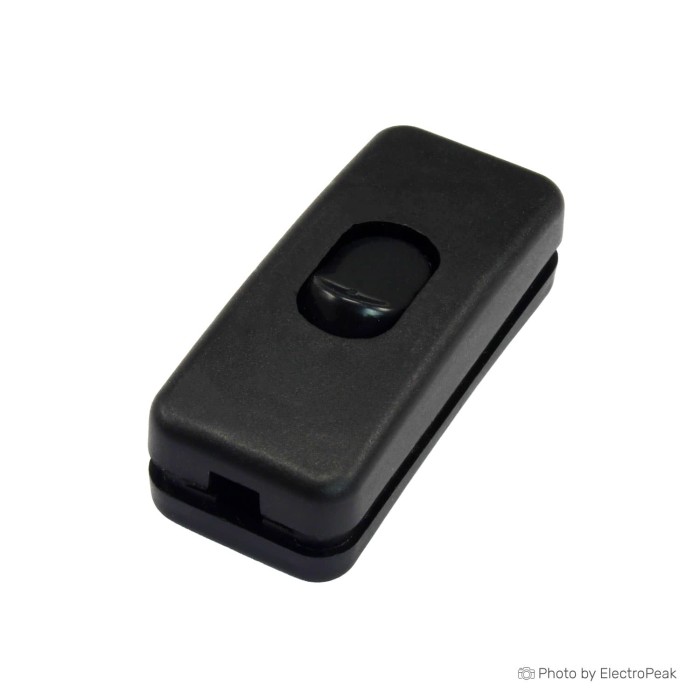

KCD-303 Rocker Switch

[M1-0091]
Shop with confidence Learn More
Availability: 927 items
SKU
M1-0091
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$1.95

The KCD-303 Rocker Switch is a versatile and durable switch designed for various DIY projects and applications, including lamps, table lamps, floor lamps, and other power control equipment. With a sleek black plastic (PP) construction, it is ideal for replacing old or malfunctioning switches or adding new switches to devices that lack them. This rocker switch is suitable for working power under 100W and operates within a voltage range of 110V to 250V. Its compact size makes it easy to install in tight spaces, providing reliable performance for your electrical projects.

Specifications of KCD-303 Rocker Switch

  • Model: 303 Switch

  • Material: Plastic (PP)

  • Color: Black

  • Connection Type: Soldering

  • Working Power: Less than 100W

  • Working Voltage: 110V~250V

  • Size: Approx. 60 x 26 x 16mm

  • Applications: DIY projects, lamps, table lamps, floor lamps, power control switches, etc.

Installation Method

  1. Keep the Zero Wire: Ensure the zero wire is intact.

  2. Cut the Fire Wire: Disconnect the fire wire.

  3. Strip the Fire Wire: Strip the insulation from the fire wire.

  4. Solder to Switch Clip: Solder the stripped fire wire to the switch clip.

  5. Place the Zero Line: Position the zero line on the opposite side.

  6. Close the Covers: Secure the upper and lower covers.

  7. Press to Secure: Press the covers firmly (avoid using a metal hammer to prevent cracking the shell).



    Notes

    1. Ensure the product matches your requirements before purchasing.

    2. Allow a ±0-2mm difference due to manual measurement (1 inch = 2.54cm).

    3. The actual product color may vary slightly from the picture shown.

    4. Confirm the details before bidding or purchasing. Thank you!
