JQ8400-FL Mini MP3 Player Audio Module
$1.9500
In stock
SKU
MOD-04-026
Volume discounts:
- +50 4 % $1.8700
- +100 7 % $1.8200
- +300 9 % $1.7800
- +500 11 % $1.7400
- +1000 13 % $1.7000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DFRobot DFPlayer PRO DF1201S MP3 Player Module Previous

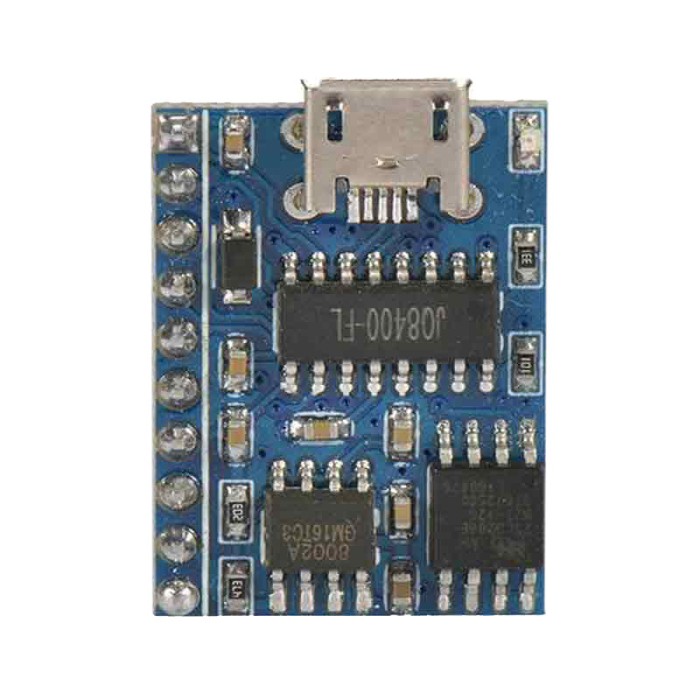

The JQ8400-FL Mini MP3 Player Audio Module is a compact audio module for MP3 playback in embedded systems. It supports a wide range of audio bit rates and sample rates for audio output. Built-in sound effects include Normal, Jazz, Classic, Pop, and Rock. The module provides USB 2.0 and UART communication options. It operates with a low standby current and a 3.3V IO level.
Features of JQ8400-FL Mini MP3 Player Audio Module
- Compact MP3 playback module
- Wide sample rate support
- Built-in sound effects
- USB 2.0 communication
- UART communication support
- Low standby current
Specifications of JQ8400-FL Mini MP3 Player Audio Module
- Supported MP3 Format: 11172-3 and ISO13813-3 layer3 audio decoding
- Supported Sample Rates: 8/11.025/12/16/22.05/24/32/44.1/48 kHz
- Sound Effects: Normal, Jazz, Classic, Pop, Rock
- USB Port: 2.0 (standard)
- UART Port: Line Serial Port, Standard Serial Port, TTL Level
- Operating Voltage: DC 3.3V-5.2V
- IO Level: 3.3V
- Standby Current: 500 µA
- Working Current: 10 mA
- PCB Size: 18x25 mm
- Operating Temperature: -40℃ to 85℃
How to Use JQ8400-FL Mini MP3 Player Audio Module
- Connect the module to a power supply within the operating voltage range.
- Use the USB 2.0 or UART interface for communication.
- Configure audio playback as needed.
More Info
- Designed for embedded audio playback applications
- Includes manufacturer development resources
| Interface Type | USB, UART |
|---|---|
| Operating Voltage (V) | 3.3V to 5.2V |
| Operating Current (mA) | Sleep: 500 µA, Working: 10 mA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 18 x 25 mm |
| Mounting Type | SMD (Surface Mount) |
| Audio Function | Audio Player |
| Sampling Rate (Hz) | 8/11.025/12/16/22.05/24/32/44.1/48 kHz |
| Audio Formats | MP3 |
| Bluetooth Ver. | No |
| Output Type | Line |
| Channels | 2-channel |
| Chipset | JQ8400 |
