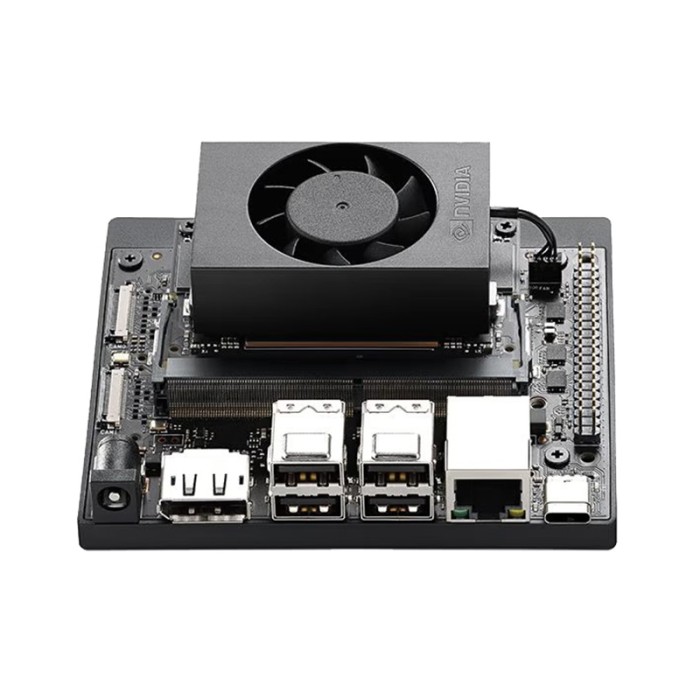

The Jetson Orin Nano Developer Kit is a cutting-edge solution for entry-level AI-powered robotics, drones, and intelligent cameras. It features impressive AI performance with 40 TOPS and is powered by a 1024-core NVIDIA Ampere GPU and a 6-core Arm Cortex-A78AE CPU. This compact kit includes a reference carrier board compatible with all Orin NX and Orin Nano modules, providing a versatile platform for rapid development and prototyping of advanced AI applications.
Specifications of Jetson Orin Nano Developer Kit
-
AI Performance: 40 TOPS
-
GPU: 1024-core NVIDIA Ampere architecture GPU with 32 tensor cores, Max frequency: 625 MHz
-
CPU: 6-core Arm Cortex-A78AE v8.2 64-bit CPU with 1.5 MB L2 + 4 MB L3 cache
-
Memory: 8 GB 128-bit LPDDR5 with 68 GB/s bandwidth
-
Storage: SD Card slot & external NVMe via M.2 Key M
-
Video Encode: 1080p 30 fps supported by 1-2 CPU cores
-
Video Decode: 1x 4K60 (H.265), 2x 4K30 (H.265), 5x 1080p60 (H.265), 11x 1080p30 (H.265)
-
CSI Camera: 2x MIPI CSI-2 22-pin Camera Connectors
-
PCIe: M.2 Key M slot with x4 PCIe Gen3, M.2 Key M slot with x2 PCIe Gen3, M.2 Key E slot
-
USB: 4x USB 3.2 Gen2 Type-A, USB Type-C Connector for UFP
-
Ethernet: 1x GbE connector
-
Display: 1x DisplayPort 1.2 (+MST) connector
-
Other IO: 40-pin expansion header (UART, SPI, I2C, GPIO), 12-pin button header, 4-pin fan header, microSD slot, DC power jack
-
Power: 7~15 W
-
Dimensions: 100x79x21 mm (including feet, carrier board, module, and thermal solution)
