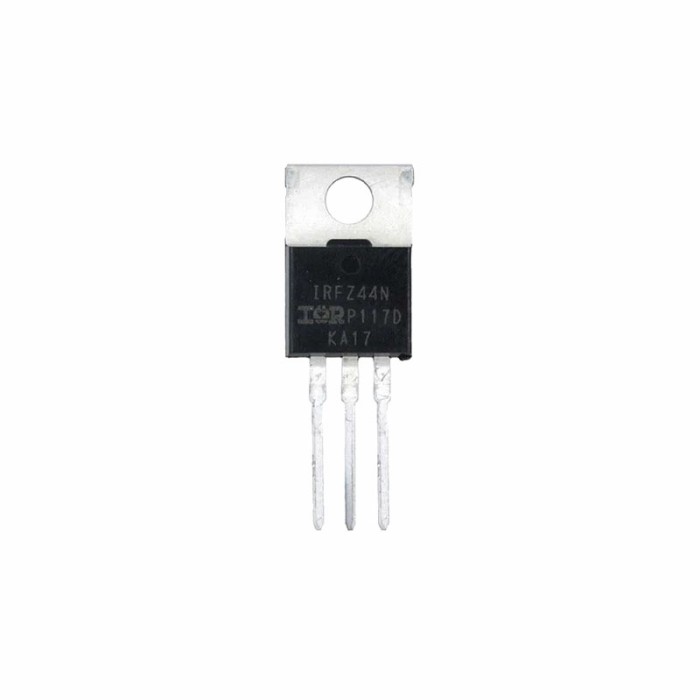

IRFZ44N, MOSFET, TO-220
$0.2000
In stock
SKU
S3-0074
IRFZ44N, MOSFET, TO-220 is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
The IRFZ44N is a high-power N-channel HEXFET MOSFET designed for high-efficiency switching applications. With a 55V drain-source voltage and 49A continuous drain current, it’s ideal for motor drives, power supplies, and general switching tasks. Packaged in a TO-220 case, it offers excellent thermal performance and easy mounting for through-hole applications.
Specifications of IRFZ44N, MOSFET, TO-220
- Transistor Type: N-Channel
- Technology: Si (Silicon)
- Drain-Source Voltage (Vds): 55V
- Continuous Drain Current (Id): 49A
- Gate-Source Voltage (Vgs): ±20V
- Drain-Source Resistance (Rds On): 17.5mΩ
- Power Dissipation (Pd): 94W
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Rise Time: 60ns
- Fall Time: 45ns
- Turn-On Delay Time: 12ns
- Turn-Off Delay Time: 44ns
- Operating Temperature Range: -55°C to +175°C
- Transconductance (Min): 19 S
- Configuration: Single
- Channel Mode: Enhancement
- Dimensions: 10x4.4x15.65mm
Datasheet of IRFZ44N, MOSFET, TO-220
