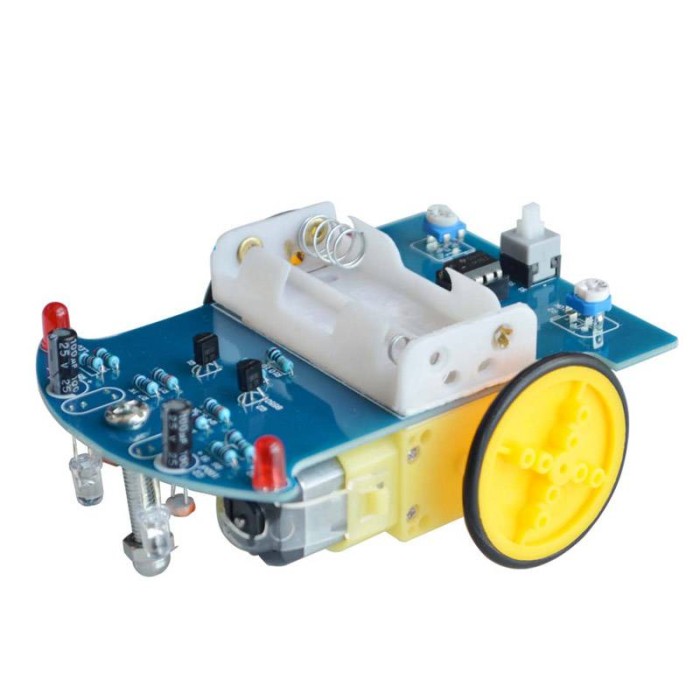

Intelligent Line Tracking Smart Car Kit

[MEC-03-003]
Volume discounts:
  • +100 5 % $1.67
  • +300 6 % $1.65
  • +500 7 % $1.62
  • +1000 9 % $1.60
Shop with confidence Learn More
Availability: 970 items
SKU
MEC-03-003
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$1.75

There is a 16 mm wide black runway in the white field.Our tracking car can drive along the black runway automatically.No matter how the runway is bent, the car can be driven automatically.We all know that the reflectivity is different when the light source to the white objects and black objects.Here we use red light source.The light is reflected through the ground to the photoresistor.By detecting the resistance of the photosensitive resistor can determine whether the car is driving in the white area.If the detection is black runway, then the car to change the direction of driving and motor will slow down or even stop and Red LED OFF on PCB front side.Drive the car in the opposite direction so that the car is always running along the runway.

 Specifications

  •  Model: D2-1
  •  Name: D2-1 Intelligent Tracking Car DIY Kit
  •  PCB Size:105*72*1.6mm
  • Installation dimension:105*85*46mm
  • Work Voltage:3V

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understand.


Package Content:
1 x LM393
1 x IC Socket
2 x Electrolytic Capacitors(C1,C2 )
2 x Potentiometers(R1,R2)
4 x 51ohm Metal Film Resistances(R5,R6,R11,R12)
2 x 1K Metal Film Resistances(R7,R8)
2 x 10ohm Metal Film Resistances(R9,R10)
2 x 3.3K Metal Film Resistances(R3,R4)
2 x Photoresistors(R13,R14)
2 x Red LEDs(D1,D2)
2 x White LEDs(D4,D5)
2 x S8550(Q1,Q2)
1 x Self-Locking Switch
2 x DC Motors
2 x Wheels
2 x Tires
2 x Screws
2 x Nuts
1 x Screw Cap
4 x Cables
1 x Battery Case
1 x PCB D2-1 Mainboard
