GP2Y0D810Z Distance Detection Sensor
$5.5000
In stock
SKU
SEN-05-011
Volume discounts:
- +25 4 % $5.2600
- +50 6 % $5.1500
- +100 9 % $5.0300
- +300 11 % $4.9100
- +500 13 % $4.7900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MLX90615ESG-DAA Non-Contact Infrared Temperature Sensor Previous

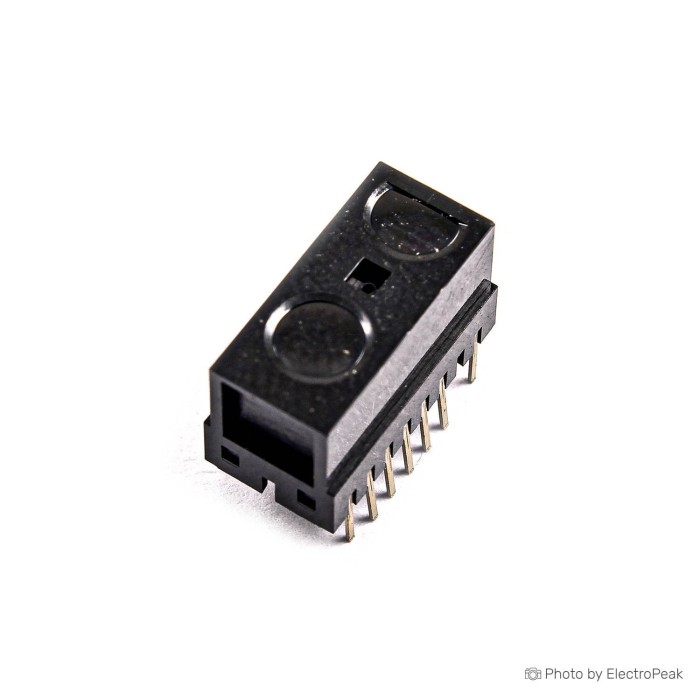

GP2Y0D810Z0F Distance Detection Sensor is a short-range distance measuring sensor for detecting objects without contact. It operates as an on-off style sensor and provides a low output voltage when an object is detected. This sensor is designed for short-distance detection between 2 cm and 10.25 cm. Its small size and fast response time make it suitable for compact detection applications. The sensor also includes a quick measurement cycle and a clear detection range for proximity sensing tasks.
Features of GP2Y0D810Z0F Distance Detection Sensor
- Short-range distance detection
- Non-contact object detection
- On-off style output behavior
- Fast response time
- Compact size
Specifications of GP2Y0D810Z0F Distance Detection Sensor
- Operating voltage: 2.7 V to 6.2 V
- Current: 5 mA
- Maximum distance: 10.25 cm
- Response time: 2.56 ms
- Measurement time: 40 ms
- Dimensions: 7.95 × 7 × 13.6 mm
- Detection range: 2 cm to 10.25 cm
How to Use GP2Y0D810Z0F Distance Detection Sensor
- Apply power within the specified operating voltage range.
- Place the sensor to monitor objects within the detection range.
- Read the output state when an object is detected.
More Info
- Designed for short-distance proximity detection.
- Functions as a touchless detection sensor.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 2.7V to 6.2V |
| Operating Current (mA) | 5mA |
| Dimensions (mm) | 7.95 × 7 × 13.6 mm |
| Output Type | Digital |
| Response Time | 2.56 ms |
| Detection Distance | 2cm to 10.25cm |
| Sensing Method | Infrared (IR) |
| Chipset | GP2Y0D810Z0F |
| Sensor Model | GP2Y0D810Z0F |
